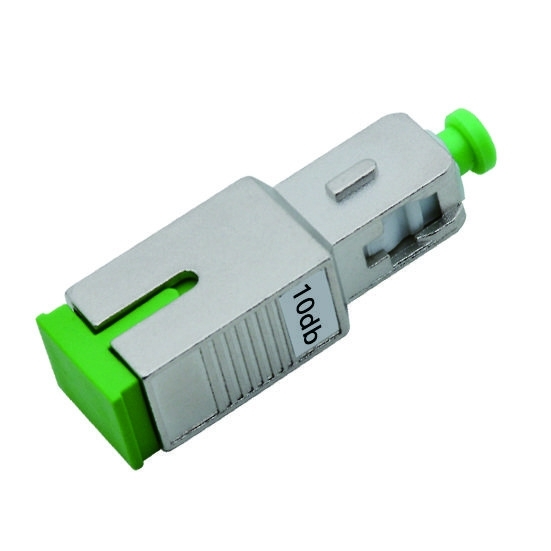

SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss

SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss
SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical Attenuator
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.6
Return Loss (dB): ≥45 Operating Temperature (℃): -5 ~ +65
Highlight:

fiber optical attenuator

,

fiber optic attenuator

Product Description

SC/APC 10dB Fiber Optical Attenuator
Fiber Optic Attenuator

1310-1550nm wavelength range with 2/3/5/7/10 dB attenuation options. Available in SC, LC, FC, ST connectors with APC/UPC polishing. Features low insertion loss and high return loss for optimal signal management.

Inquire Now
SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 0SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 1
Product Identification
Zion CodeZion Description
7236003SC/APC 10dB Fiber Optical Attenuator
Applications

ZION COMMUNICATIONS' Fiber Optic Attenuator is an optical device designed to reduce optical signal energy. It attenuates input optical power to prevent distortion in optical receivers caused by excessive input power. As a passive optical component, it is essential for debugging optical power performance, calibrating fiber optic instruments, and attenuating fiber optic signals.
The product utilizes attenuating fiber doped with metal ions to precisely adjust optical power to required levels. Primary applications include:

  • Optical fiber communication systems
  • Optical fiber CATV networks
  • High-power optical device measurement
  • Input power attenuation to prevent receiver distortion

Zion Communication's attenuators feature high attenuation precision, low additional loss, excellent stability, and wide operating temperature range, making them the ideal choice for professional applications.

Connector Types
SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 2
LC Attenuator

Used in LC fiber interfaces with modular jack (RJ) latch mechanism. Commonly used with SFP modules in routers.

SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 3
SC Attenuator

Applied to SC fiber interfaces, featuring a flat design similar to RJ-45 but with copper column contacts instead of thin copper pins.

SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 4
FC Attenuator

Applied to FC fiber interfaces with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.

SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 5
ST Attenuator

Applied to ST fiber interfaces with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.

Technical Specifications
ParameterFC, SC, LC, ST
Operating Wavelength (nm)1310-1550
Insertion Loss (dB)≤ 0.6
Return Loss (dB)≥45
Repeatability (dB)≤ 0.2
Resolution (dB)≤ 0.1
Wavelength Dependent Loss (dB)WDL≤ 0.3 (CorLBand)
Polarization Dependent Loss (dB)PDL≤ 0.2
Temperature Dependent Loss (dB)TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB)±0.5
Tolerance for 6-30dB Attenuation (nm)±10
Mating Durability (cycle)≥1000
Response Time (dB/ms)3
Attenuation Control Accuracy (dB)±0.5
Supply Voltage (DC)± 5V
Operating Temperature (°C)-5 ~ +65
Storage Temperature (°C)-40 ~ +75
Related Fiber Optical Attenuator Products
Zion CodeProduct CodeZion Description
7237001ZC11FXAADXXLC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237002ZC11FXBBDXXLC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237003ZC11FXCCDXXSC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237004ZC11FXDDDXXSC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237005ZC12FXEEDXXST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237006ZC11FXFFDXXST UPC Female to ST UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237007ZC11FXGGDXXFC APC Female to FC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237008ZC11FXHHDXXFC UPC Female to FC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237009ZC11FXIIDXXMU APC Female to MU APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237010ZC12FXJJDXXMU UPC Female to MU UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237011ZC11FXKKDXXE2000 APC Female to E2000 APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237012ZC11FXLLDXXE2000 UPC Female to E2000 UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237013ZC12FXMMDXX8F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237014ZC11FXNNDXX12F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237015ZC11FXOODXX24F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team. Customization options include:

  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Colors & Lengths Available
Featured Product Examples
SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 6
7237005, ZC12FXEEDXX

ST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)

SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 7
7237004, ZC11FXDDDXX

SC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)

SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 8
7237003, ZC11FXCCDXX

SC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)

SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 9
7237002, ZC11FXBBDXX

LC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)

SC/APC 10dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 10
7237001, ZC11FXAADXX

LC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
