SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction

SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction
SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical Attenuator
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.6
Return Loss (dB): ≥45 Operating Temperature (℃): -5 ~ +65
Highlight:

fiber optical attenuator

,

fiber optic attenuator

Product Description

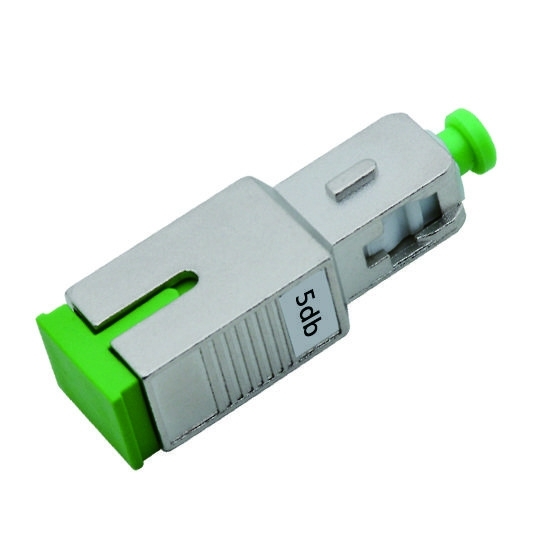

SC/APC 5dB Fiber Optical Attenuator
Fiber Optic Attenuator
1310-1550nm 2/3/5/7/10 dB SC LC FC ST/APC UPC Low Insertion Loss High Return Loss
Inquire Now SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 0 SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 1
Product Identification
Zion Code Zion Description
7236002 SC/APC 5dB Fiber Optical Attenuator
Applications
ZION COMMUNICATIONS' Fiber Optic Attenuator is an optical device that reduces optical signal energy. It attenuates input optical power to prevent distortion caused by excessive power levels in optical receivers. This passive optical component is essential for debugging optical power performance, calibrating fiber optic instruments, and attenuating fiber optic signals in communication systems.
The product utilizes attenuating fiber doped with metal ions to adjust optical power to required levels. Primary applications include:
  • Optical fiber communication systems
  • Optical fiber CATV networks
  • High-power optical device measurement
  • Input power attenuation to prevent receiver distortion
Connector Types
Connector Type Description
LC, SC, FC, ST Available in multiple connector configurations
SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 2
LC Attenuator
Used in LC fiber interfaces, connecting to SFP modules with easy-to-operate modular jack latch mechanism. Commonly used in routers.
SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 3
SC Attenuator
Applied to SC fiber interfaces, featuring a flat design similar to RJ-45 but with copper contacts. Identified by copper column interior.
SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 4
FC Attenuator
Applied to FC fiber interfaces with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 5
ST Attenuator
Applied to ST fiber interfaces with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
Technical Specifications
Parameter FC, SC, LC, ST
Operating Wavelength (nm)1310-1550
Insertion Loss (dB)≤ 0.6
Return Loss (dB)≥45
Repeatability (dB)≤ 0.2
Resolution (dB)≤ 0.1
Wavelength Dependent Loss (dB)WDL≤ 0.3 (C+L Band)
Polarization Dependent Loss (dB)PDL≤ 0.2
Temperature Dependent Loss (dB)TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB)±0.5
Tolerance for 6-30dB Attenuation (nm)±10
Mating Durability (cycle)≥1000
Response Time (dB/ms)3
Attenuation Control Accuracy (dB)±0.5
Supply Voltage (DC)± 5V
Operating Temperature (°C)-5 ~ +65
Storage Temperature (°C)-40 ~ +75
Related Fiber Optical Attenuator Products
Zion Code Product Code Description
7237001ZC11FXAADXXLC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237002ZC11FXBBDXXLC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237003ZC11FXCCDXXSC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237004ZC11FXDDDXXSC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237005ZC12FXEEDXXST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237006ZC11FXFFDXXST UPC Female to ST UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237007ZC11FXGGDXXFC APC Female to FC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237008ZC11FXHHDXXFC UPC Female to FC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237009ZC11FXIIDXXMU APC Female to MU APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237010ZC12FXJJDXXMU UPC Female to MU UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237011ZC11FXKKDXXE2000 APC Female to E2000 APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237012ZC11FXLLDXXE2000 UPC Female to E2000 UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237013ZC12FXMMDXX8F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237014ZC11FXNNDXX12F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237015ZC11FXOODXX24F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom solutions.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
Featured Product Images
SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 6
7237005, ZC12FXEEDXX: ST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 7
7237004, ZC11FXDDDXX: SC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 8
7237003, ZC11FXCCDXX: SC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 9
7237002, ZC11FXBBDXX: LC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
SC/APC 5dB Fiber Optical Attenuator with 1310-1550nm Wavelength for Precise Signal Reduction 10
7237001, ZC11FXAADXX: LC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
