SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss

SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical Attenuator
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.6
Return Loss (dB): ≥45 Operating Temperature (℃): -5 ~ +65
Highlight:

fiber optical attenuator

,

fiber optic attenuator

Product Description

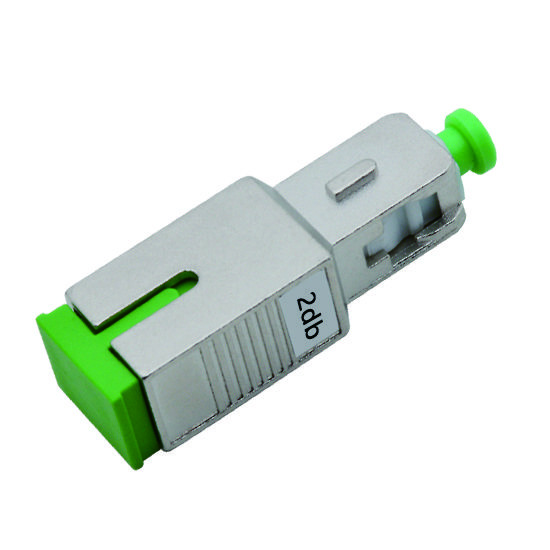

SC/APC 2dB Fiber Optical Attenuator
Fiber Optic Attenuator
1310-1550nm 2/3/5/7/10 dB SC LC FC ST/APC UPC Low Insertion Loss High Return Loss
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 0 SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 1
Product Identification
Zion Code Zion Description
7236001 SC/APC 2dB Fiber Optical Attenuator
Applications
ZION COMMUNICATIONS' Fiber Optic Attenuator is an optical device that reduces optical signal energy. It attenuates input optical power to prevent distortion in optical receivers caused by excessive input power. As a passive optical component, it's used for optical power performance debugging, fiber instrument calibration, and signal attenuation in optical communication systems.
The product utilizes attenuating fiber doped with metal ions to adjust optical power to required levels. Primary applications include:
  • Optical fiber communication systems
  • Fiber optic CATV networks
  • High-power optical device measurement
  • Input power attenuation to prevent receiver distortion
Our fiber optic attenuators feature high attenuation precision, low additional loss, excellent stability, and wide operating temperature range.
Connector Types
Connector Type Description
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 2 LC optical fiber attenuator: Used in LC fiber interfaces, connects to SFP modules with modular jack (RJ) latch mechanism. Commonly used in routers.
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 3 SC optical fiber attenuator: Applied to SC fiber interfaces, features flat design similar to RJ-45 but with copper contacts. Used in various networking applications.
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 4 FC optical fiber attenuator: Applied to FC fiber interfaces, features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF distribution frames.
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 5 ST optical fiber attenuator: Applied to ST fiber interfaces, features round shell with turnbuckle fastening. Commonly used in fiber distribution frames and 10Base-F connections.
Technical Specifications
Parameter FC, SC, LC, ST
Operating Wavelength (nm) 1310-1550
Insertion Loss (dB) ≤ 0.6
Return Loss (dB) ≥45
Repeatability (dB) ≤ 0.2
Resolution (dB) ≤ 0.1
Wavelength Dependent Loss (dB) WDL≤ 0.3 (CorLBand)
Polarization Dependent Loss (dB) PDL≤ 0.2
Temperature Dependent Loss (dB) TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB) ±0.5
Tolerance for 6-30dB Attenuation (nm) ±10
Mating Durability (cycle) ≥1000
Response Time (dB/ms) 3
Attenuation Control Accuracy (dB) ±0.5
Supply Voltage (DC) ± 5V
Operating Temperature (°C) -5 ~ +65
Storage Temperature (°C) -40 ~ +75
Related Fiber Optical Attenuator Products
Zion Code Product Code Zion Description
7237001 ZC11FXAADXX LC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237002 ZC11FXBBDXX LC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237003 ZC11FXCCDXX SC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237004 ZC11FXDDDXX SC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237005 ZC12FXEEDXX ST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237006 ZC11FXFFDXX ST UPC Female to ST UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237007 ZC11FXGGDXX FC APC Female to FC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237008 ZC11FXHHDXX FC UPC Female to FC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237009 ZC11FXIIDXX MU APC Female to MU APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237010 ZC12FXJJDXX MU UPC Female to MU UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237011 ZC11FXKKDXX E2000 APC Female to E2000 APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237012 ZC11FXLLDXX E2000 UPC Female to E2000 UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237013 ZC12FXMMDXX 8F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237014 ZC11FXNNDXX 12F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237015 ZC11FXOODXX 24F MPO(female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team and extensive manufacturing experience.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
Product Gallery
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 6
7237005, ZC12FXEEDXX
ST APC Female to ST APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 7
7237004, ZC11FXDDDXX
SC UPC Female to SC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 8
7237003, ZC11FXCCDXX
SC APC Female to SC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 9
7237002, ZC11FXBBDXX
LC UPC Female to LC UPC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
SC/APC Connector 2dB Fiber Optical Attenuator for 1310-1550nm Wavelength with Low Insertion Loss 10
7237001, ZC11FXAADXX
LC APC Female to LC APC male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
