FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler

FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optic Adapter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.2
Return Loss (dB): PC ≥45 Operating Temperature (℃): -40 ~ +85
Highlight:

fiber optic adapter

,

fiber optic coupler

Product Description

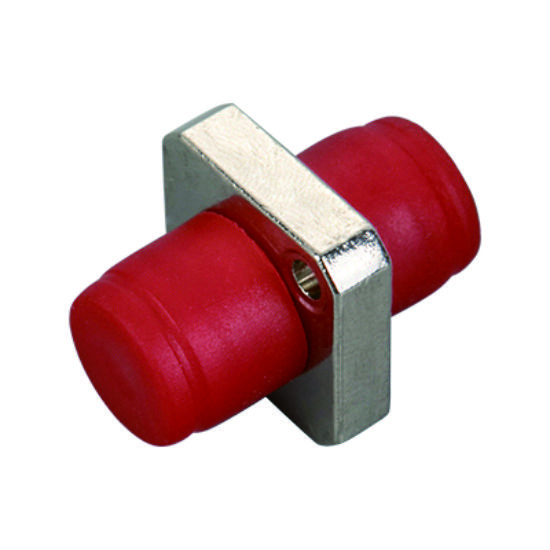

FC With Rectangle Flange Fiber Optic Adapter/Coupler
Professional fiber optic adapter designed for reliable connectivity in various network applications. Compatible with SC, LC, FC, ST connectors in APC/UPC configurations.
Inquire Now FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 0 FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 1 FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 2
Product Identification
Zion Code Zion Description
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Applications
  • Used in LC optical fiber interface to connect the connector of SFP module
  • Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers
FC With Rectangle Flange Adapter Dimensions
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 3
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Related Fiber Optic Adapter Products
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types and Applications
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 4
LC Connector
Used in LC optical fiber interface to connect the connector of SFP module. Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers.
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 5
SC Connector
Used in SC fiber optic interface, similar to RJ-45 but flatter. Identified by copper column contacts instead of thin copper contacts.
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 6
FC Connector
Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening method. Typically used on ODF side and distribution frames.
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 7
ST Connector
Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames and 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support. Customization options include:
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Colors & Lengths Available
Optical Components Portfolio
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 8
ADSS Cable Products
All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath, Gel-filled, Self-supporting, Aramid Yarn| KEVLAR
Read More
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 9
FTTH Drop Cable
FTTH (fiber to the home) networks covering indoor and outdoor sections with transition capabilities.
Read More
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 10
Fiber Optic Splice Closure
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
Read More
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 11
Fiber Optic Terminal Box
Fiber Optical Terminal Box 4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
Read More
Cabling Infrastructure Solutions
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 12
Copper Patch Cord
24/26AWG CAT5E/CAT6/CAT6A/CAT7/CAT8 UTP/FTP/SFTP CCA/BC PVC/LSZH RJ45 FU to 50U Copper Patch Cord
Read More
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 13
Bulk Ethernet Cables
Bulk CAT 5e cables, CAT 6 cables, CAT 6a cables, CAT7 cables, Cat 8 cables, etc.
Read More
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 14
Server/Network Rack Cabinet
VE/603/IDC/601S/PE/TE series SPCC Cold Rolled Steel High Loading Capacity Server/Network Rack Cabinet
Read More
FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler 15
Wall Mount Rack Cabinet
SE/EW/SA/SB/SQ/VA series SPCC Cold Rolled Steel High Excellent Compression Wall Mount Rack Cabinet
Read More
