SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range

SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range
SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optic Adapter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.2
Return Loss (dB): PC ≥45 Operating Temperature (℃): -40 ~ +85
Highlight:

fiber optic adapter

,

fiber optic coupler

Product Description

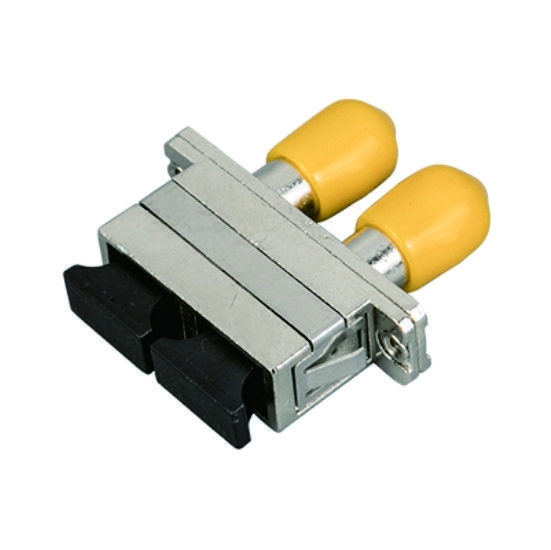

SC-ST DX Hybrid Fiber Optic Adapter/Coupler
Professional fiber optic adapter designed for SC to ST connector interfaces. Features DX welding symmetry and available in plastic or hybrid construction for various fiber sizes including 0.9mm, 2.0mm, and 3.0mm.
SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 0 SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 1 SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 2
Product Identification
Zion Code Zion Description
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
Primary Applications
  • Used in LC optical fiber interface to connect the connector of SFP module
  • Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers
Zion Communication Fiber Optic Adapter Portfolio
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Fiber Optic Connector Types
SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 3
LC Connector
Used in LC optical fiber interface to connect the connector of SFP module. Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers.
SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 4
SC Connector
Used in SC fiber optic interface, similar to RJ-45 interface but flatter. Differentiated by internal contact design - copper contacts indicate RJ-45, copper column indicates SC fiber interface.
SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 5
FC Connector
Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening. Typically used on ODF side, most commonly on distribution frames.
SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 6
ST Connector
Used in ST optical fiber interface, commonly found in fiber distribution frames. Features round shell with turnbuckle fastening, commonly used for 10Base-F connections.
Technical Specifications
Parameter SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
OEM/ODM Customization Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support for customized solutions.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
Related Optical Components
SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 7
ADSS Cable Products
All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath, Gel-filled, Self-supporting, Aramid Yarn| KEVLAR
Read More
SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 8
FTTH Drop Cable
FTTH (fiber to the home) networks installed in many areas covering indoor and outdoor sections and transitions.
Read More
SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 9
Fiber Optic Splice Closure
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
Read More
SC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 10
Fiber Optic Terminal Box
Fiber Optical Terminal Box 4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
Read More
