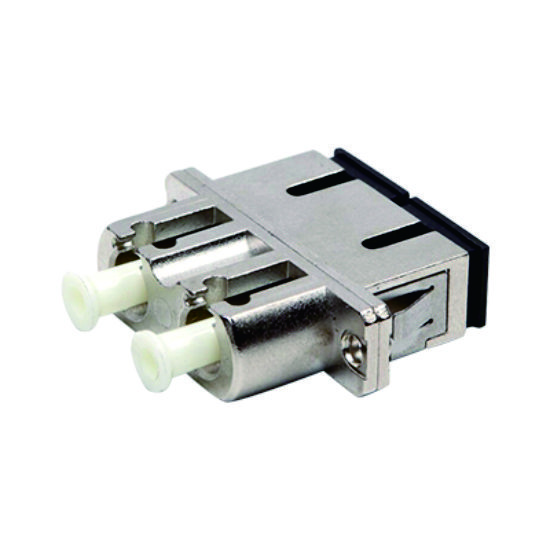

SC-LC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃) Optical Coupler

SC-LC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃) Optical Coupler
SC-LC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃) Optical Coupler
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optic Adapter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.2
Return Loss (dB): PC ≥45 Operating Temperature (℃): -40 ~ +85
Highlight:

fiber optic adapter

,

fiber optic coupler

Product Description

SC-LC DX Hybrid Fiber Optic Adapter/Coupler
Product Overview

SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER

SC-LC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃) Optical Coupler 0 SC-LC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃) Optical Coupler 1
Product Identification
Zion Code Zion Description
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
Applications
  • Used in LC optical fiber interface to connect the connector of SFP module
  • Made by the easy-to-operate modular jack (RJ) latch mechanism (commonly used in routers)
Zion Communication Fiber Optic Adapter Products
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
SC-LC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃) Optical Coupler 2
LC Connector

Used in LC optical fiber interface to connect the connector of SFP module. Made by the easy-to-operate modular jack (RJ) latch mechanism (commonly used in routers).

SC-LC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃) Optical Coupler 3
SC Connector

Used in SC fiber optic interface, similar to RJ-45 interface but flatter. The key difference is the inner contact - copper contacts indicate RJ-45, copper column indicates SC fiber interface.

SC-LC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃) Optical Coupler 4
FC Connector

Used in FC optical fiber interface with external metal sleeve strengthening and turnbuckle fastening method. Generally used on ODF side (most used on distribution frames).

SC-LC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃) Optical Coupler 5
ST Connector

Used in ST optical fiber interface, commonly used in fiber distribution frames. Features a round shell with turnbuckle fastening (commonly used for 10Base-F connections).

Technical Specifications
Parameter SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
OEM/ODM Services

ZION Communication has extensive experience in producing OEM/ODM cases with our professional R&D team.

  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
