SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range

SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optic Adapter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.2
Return Loss (dB): PC ≥45 Operating Temperature (℃): -40 ~ +85
Highlight:

fiber optic adapter

,

fiber optic coupler

Product Description

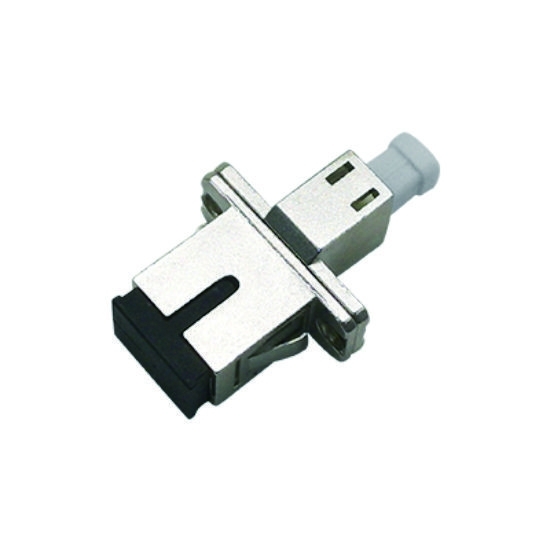

SC-LC SX Hybrid Fiber Optic Adapter/Coupler
This hybrid fiber optic adapter/coupler provides seamless connectivity between SC and LC fiber optic interfaces. Designed for SX applications, it supports various cable diameters including 0.9mm, 2.0mm, and 3.0mm, available in both plastic and hybrid constructions with welding symmetry.
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 0 SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 1 SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 2 SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 3 SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 4
Product Identification
Zion Code Zion Description
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
Primary Applications
  • Connects LC optical fiber interfaces to SFP module connectors
  • Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers
Dimensional Specifications
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 5
Technical Characteristics
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 | 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related Fiber Optic Adapter Products
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Type Specifications
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 6
LC Connector
Used in LC optical fiber interface to connect the connector of SFP module. Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers.
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 7
SC Connector
Used in SC fiber optic interface, similar to RJ-45 but flatter. Identified by copper column contacts rather than thin copper contacts.
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 8
FC Connector
Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening method. Typically used on ODF side distribution frames.
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 9
ST Connector
Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Customization Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team. Customization options include:
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Colors & Lengths Available
Related Optical Components
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 10
ADSS Cable Products
All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath, Gel-filled, Self-supporting, Aramid Yarn| KEVLAR
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 11
FTTH Drop Cable
FTTH (fiber to the home) networks covering indoor and outdoor sections with transition capabilities.
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 12
Fiber Optic Splice Closure
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range 13
Fiber Optic Terminal Box
Fiber Optical Terminal Box 4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
