FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃)

FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃)
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃)
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optic Adapter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.2
Return Loss (dB): PC ≥45 Operating Temperature (℃): -40 ~ +85
Highlight:

fiber optic adapter

,

fiber optic coupler

Product Description

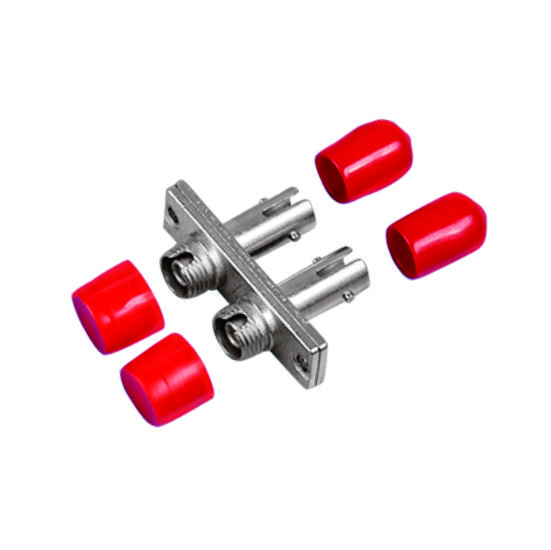

FC-ST DX Hybrid Fiber Optic Adapter/Coupler
High-performance fiber optic adapter designed for reliable connectivity between FC and ST connector interfaces with duplex configuration.
Product Overview
SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 0 FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 1 FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 2 FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 3 FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 4
Product Identification
Zion Code Zion Description
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
Primary Applications
  • Used in LC optical fiber interface to connect the connector of SFP module
  • Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers
Zion Communication Fiber Optic Adapter Portfolio
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Type Specifications
Connector Description & Applications
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 5 Used in LC optical fiber interface to connect the connector of SFP module. Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers.
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 6 Used in SC fiber optic interface, similar to RJ-45 but flatter with copper column contacts instead of thin copper wires.
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 7 Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening, typically used on ODF side (distribution frames).
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 8 Used in ST optical fiber interface with round shell and turnbuckle fastening, commonly used in fiber distribution frames for 10Base-F connections.
Technical Characteristics
Parameter SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
Related Optical Components
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 9
ADSS Cable Products
All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath, Gel-filled, Self-supporting, Aramid Yarn| KEVLAR
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 10
FTTH Drop Cable
FTTH (fiber to the home) networks covering indoor and outdoor sections with transition capabilities.
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 11
Fiber Optic Splice Closure
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 12
Fiber Optic Terminal Box
Fiber Optical Terminal Box 4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 13
Fiber Optic Patch Panel
FTTX project, Data processing centers/Cable television (CATV), Other applications in Fiber optical systems
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 14
Fiber Optic Patch Cord
SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 15
MTP/MPO
MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 16
Fiber Optic Splitter
1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 17
WDM
Low insertion loss, wide pass band, high channel isolation with high stability and reliability.
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 18
Fiber Optic Adapter
SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 19
Fiber Optic Attenuator
1310-1550nm 2/3/5/7/10 dB SC LC FC ST/APC UPC Low Insertion Loss High Return Loss OPTIC ATTENUATOR
Read More
FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃) 20
Fiber Optic Connector
SC LC FC ST/APC UPC SX/DX 0.9/2.0/3.0mm Pre-polished Ferrule/FAST Field Assembly OPTIC PATCH CONNECTOR
Read More
