SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range

SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range
SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optic Adapter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.2
Return Loss (dB): PC ≥45 Operating Temperature (℃): -40 ~ +85
Highlight:

fiber optic adapter

,

fiber optic coupler

Product Description

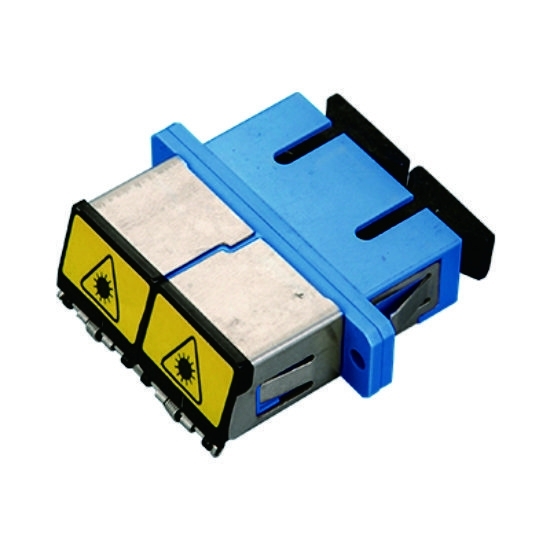

SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange

Professional fiber optic adapter designed for reliable connectivity in various networking environments. Features metal construction with flange for secure mounting and laser avoidance safety.

Product Features
  • SC DX metal construction with protective flange
  • Laser avoidance safety feature
  • Compatible with multiple connector types
  • High-performance optical characteristics
  • Durable design for industrial applications
Inquire Now
SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range 0SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range 1SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range 2SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range 3
Product Identification
Zion CodeZion Description
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
Applications
  • Used in LC optical fiber interface to connect the connector of SFP module
  • Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers
SC DX Adapter with Flange Dimensions
SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range 4
Technical Specifications
ParameterFC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FCSM (OS2)MM (OM1,2,3,4)
Operating Wavelength (nm)1310-1550850-1300
Insertion Loss (dB)≤ 0.2
Return Loss (dB)PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB)≤ 0.2
Alternating Loss (dB)≤ 0.2
DurabilityThe change of 500 interpolation times is less than 0.20dB
Number of ChannelsSingle core, Dual core, 4 core
Frame MaterialMetal or Plastic
Sleeve MaterialCeramic or Metal
Operating Temperature (°C)-40 ~ +85
Storage Temperature (°C)-40 ~ +85
Related Fiber Optic Adapter Products
7235001
LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002
LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003
LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004
SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005
SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006
SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007
SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008
SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009
SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010
FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011
FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012
SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013
SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014
SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015
SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016
FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017
FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018
FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types and Applications
SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range 5
LC Connector

Used in LC optical fiber interface to connect the connector of SFP module. Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers.

SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range 6
SC Connector

Used in SC fiber optic interface, similar to RJ-45 but flatter with copper column contacts instead of thin copper contacts.

SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range 7
FC Connector

Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening method. Generally used on ODF side (distribution frame).

SC DX Metal Avoid Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Insertion Loss and Wide Operating Temperature Range 8
ST Connector

Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in optical fiber distribution frames and for 10Base-F connections.

OEM/ODM Customization Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:

  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
