| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | Fiber Optic Adapter |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Operating Wavelength (nm): | 1310-1550 | Insertion Loss (dB): | ≤ 0.2 |
|---|---|---|---|
| Return Loss (dB): | PC ≥45 | Operating Temperature (℃): | -40 ~ +85 |
| High Light: | fiber optic adapter,fiber optic coupler |
||
SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER
| Zion Code | Zion Description | |||||||

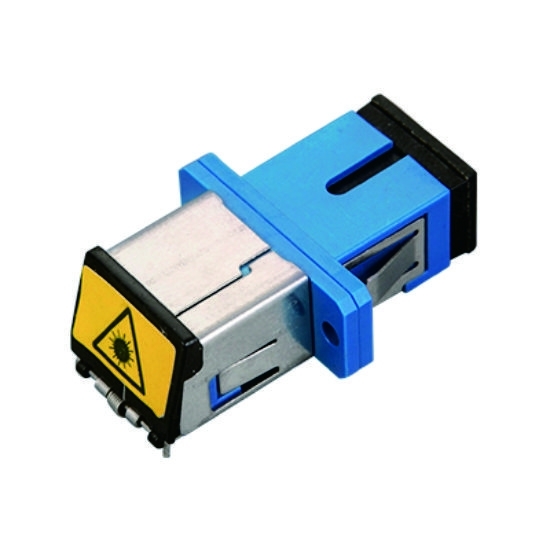

| 7235006 | SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange | |||||||
| Parameter | FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC | |||||||
| SM (OS2) |
MM (OM1,2,3,4) |
|||||||
| Operating Wavelength(nm) | 1310-1550 | 850-1300 | ||||||
| Insertion Loss (dB) | ≤ 0.2 | |||||||
| Return Loss (dB) | PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30 | ||||
| Repeatability (dB) | ≤ 0.2 | |||||||
| Alternating loss (dB) | ≤ 0.2 | |||||||
| Durability | The change of 500 interpolation times is less than 0.20dB | |||||||
| Number of channels | Single core, Dual core, 4 core | |||||||
| Frame material | Metal or Plastic | |||||||
| Sleeve material | Ceramic or Metal | |||||||
| Operating Temperature (℃) | -40 ~ +85 | |||||||
| Storage Temperature (℃) | -40 ~ +85 |
|||||||
Zion Communication’s Hot Fiber Optical patch Adapter
| Zion Code | Zion Description | |||||||
| 7235001 | LC SX Plastic Fiber Optic Adapter/Coupler with Flange | |||||||
| 7235002 | LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange | |||||||
| 7235003 | LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange | |||||||
| 7235004 | SC Plastic Fiber Optic Adapter/Coupler with Legs | |||||||
| 7235005 | SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange | |||||||
| 7235006 | SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange | |||||||
| 7235007 | SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange | |||||||
| 7235008 | SC-FC SX Hybrid Fiber Optic Adapter/Coupler | |||||||
| 7235009 | SC-FC DX Hybrid Fiber Optic Adapter/Coupler | |||||||
| 7235010 | FC-ST SX Hybrid Fiber Optic Adapter/Coupler | |||||||
| 7235011 | FC-ST DX Hybrid Fiber Optic Adapter/Coupler | |||||||
| 7235012 | SC-LC SX Hybrid Fiber Optic Adapter/Coupler | |||||||
| 7235013 | SC-LC DX Hybrid Fiber Optic Adapter/Coupler | |||||||
| 7235014 | SC-ST SX Hybrid Fiber Optic Adapter/Coupler | |||||||
| 7235015 | SC-ST DX Hybrid Fiber Optic Adapter/Coupler | |||||||
| 7235016 | FC SX Big D-Type Fiber Optic Adapter/Coupler | |||||||
| 7235017 | FC SX With Rectangle Flange Fiber Optic Adapter/Coupler | |||||||
| 7235018 | FC With Rectangle Flange Fiber Optic Adapter/Coupler | |||||||
| Connector Type | LC, SC, FC, ST | |||||||
|
Used in LC optical fiber interface to connect the connector of SFP module. It is made by the easy-to-operate modular jack (RJ) latch mechanism. (Routers are commonly used) | |||||||
|
Used in SC fiber optic interface, it looks very similar to the RJ-45 interface, but the SC interface is flatter, and the obvious difference is the inner contact. If it is 8 thin copper contacts, then It is an RJ-45 interface, if it is a copper column, it is an SC fiber interface. | |||||||
|
Used in FC optical fiber interface, the external strengthening method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (most used on the distribution frame) | |||||||
|
Used in ST optical fiber interface, commonly used in optical fiber distribution frame, the shell is round, and the fastening method is turnbuckle. (For 10Base-F connection, the connector is usually ST type. Commonly used in optical fiber distribution frame) | |||||||
ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo
• Printing on Cable
• Label/PE bag/Carton design
• Different Color & Different Lengths Available
