SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler

SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler
SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optic Adapter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.2
Return Loss (dB): PC ≥45 Operating Temperature (℃): -40 ~ +85
Highlight:

fiber optic adapter

,

fiber optic coupler

Product Description

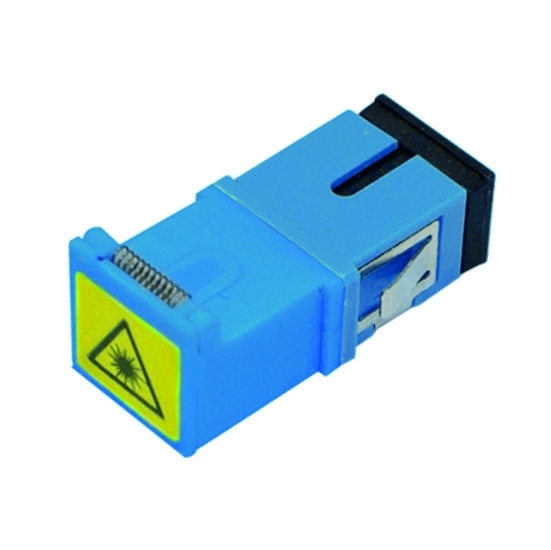

SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
Fiber Optic Adapter

SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER

SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 0SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 1SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 2SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 3
Product Identification
Zion CodeZion Description
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
Applications
  • Used in LC optical fiber interface to connect the connector of SFP module
  • Made by the easy-to-operate modular jack (RJ) latch mechanism (commonly used in routers)
Technical Specifications
SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 4
ParameterFC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2)MM (OM1,2,3,4)
Operating Wavelength(nm)1310-1550 | 850-1300
Insertion Loss (dB)≤ 0.2
Return Loss (dB)PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB)≤ 0.2
Alternating loss (dB)≤ 0.2
DurabilityThe change of 500 interpolation times is less than 0.20dB
Number of channelsSingle core, Dual core, 4 core
Frame materialMetal or Plastic
Sleeve materialCeramic or Metal
Operating Temperature (℃)-40 ~ +85
Storage Temperature (℃)-40 ~ +85
Related Fiber Optic Adapter Products
Zion CodeZion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types and Applications
SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 5
LC Connector
Used in LC optical fiber interface to connect the connector of SFP module. It is made by the easy-to-operate modular jack (RJ) latch mechanism. (Routers are commonly used)
SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 6
SC Connector
Used in SC fiber optic interface, it looks very similar to the RJ-45 interface, but the SC interface is flatter, and the obvious difference is the inner contact. If it is 8 thin copper contacts, then it is an RJ-45 interface, if it is a copper column, it is an SC fiber interface.
SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 7
FC Connector
Used in FC optical fiber interface, the external strengthening method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (most used on the distribution frame)
SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 8
ST Connector
Used in ST optical fiber interface, commonly used in optical fiber distribution frame, the shell is round, and the fastening method is turnbuckle. (For 10Base-F connection, the connector is usually ST type. Commonly used in optical fiber distribution frame)
OEM/ODM Services

ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.

  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
Optical Components Portfolio
SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 9
ADSS Cable Products

All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath, Gel-filled, Self-supporting, Aramid Yarn| KEVLAR

SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 10
FTTH Drop Cable

FTTH (fiber to the home) networks are installed in many areas covering indoor and outdoor sections and the transition in between.

SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 11
Fiber Optic Splice Closure

24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE

SC Cover Avoid Laser Plastic Fiber Optic Adapter without Flange and ≤ 0.2dB Insertion Loss Optical Coupler 12
Fiber Optic Terminal Box

Fiber Optical Terminal Box 4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
