LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range

LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range
LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optic Adapter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.2
Return Loss (dB): PC ≥45 Operating Temperature (℃): -40 ~ +85
Highlight:

fiber optic adapter

,

fiber optic coupler

Product Description

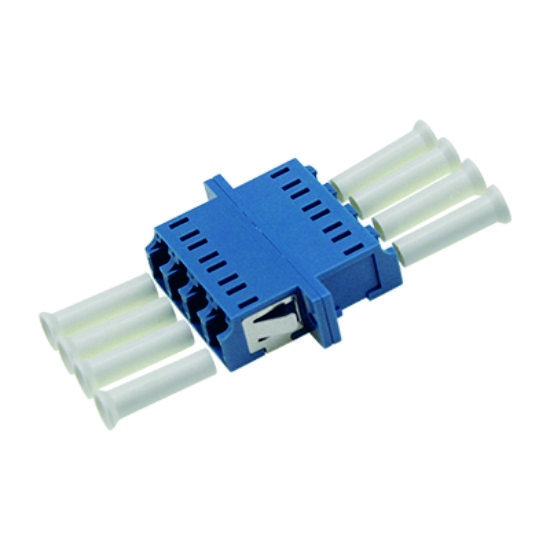

LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
High-performance fiber optic adapter designed for reliable LC optical fiber connections with flange mounting capability.
LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 0 LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 1 LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 2 LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 3
Product Identification
Zion Code Zion Description
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
Applications
  • Used in LC optical fiber interface to connect SFP module connectors
  • Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers
LC QUAD Adapter with Flange Dimensions
LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 4
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Related Fiber Optic Adapter Products
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types and Applications
LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 5
LC Connector: Used in LC optical fiber interface to connect SFP module connectors. Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers.
LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 6
SC Connector: Used in SC fiber optic interface, similar to RJ-45 but flatter. Identified by copper column contacts instead of thin copper contacts.
LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 7
FC Connector: Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening. Typically used on ODF distribution frames.
LC QUAD One-piece Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss for 1310-1550nm Wavelength and -40 to +85℃ Temperature Range 8
ST Connector: Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Length Options Available
