Home > Products> Optical Fiber System> LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange

LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange

LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange
LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optic Adapter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.2
Return Loss (dB): PC ≥45 Operating Temperature (℃): -40 ~ +85
Highlight:

fiber optic adapter

,

fiber optic coupler

Product Description

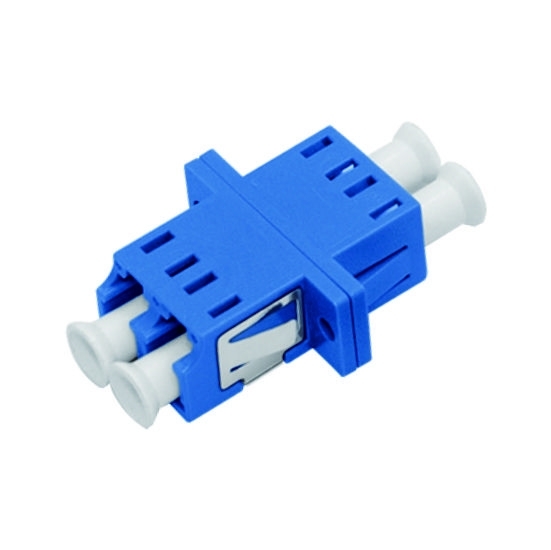

LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
High-performance fiber optic adapter designed for LC optical fiber interfaces, featuring welding symmetry construction and flange mounting for secure installation.
LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange 0 LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange 1 LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange 2 LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange 3
Product Identification
Zion Code Zion Description
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
Applications
  • Connects LC optical fiber interfaces to SFP module connectors
  • Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers
LC DX Adapter with Flange Dimensions
LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange 4
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related Fiber Optic Adapter Products
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types and Applications
LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange 5
LC Connector
Used in LC optical fiber interface to connect the connector of SFP module. It is made by the easy-to-operate modular jack (RJ) latch mechanism. (Routers are commonly used)
LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange 6
SC Connector
Used in SC fiber optic interface, it looks very similar to the RJ-45 interface, but the SC interface is flatter, and the obvious difference is the inner contact.
LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange 7
FC Connector
Used in FC optical fiber interface, the external strengthening method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (most used on the distribution frame)
LC Dx Welding Symmetry Plastic Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Flange 8
ST Connector
Used in ST optical fiber interface, commonly used in optical fiber distribution frame, the shell is round, and the fastening method is turnbuckle.
OEM/ODM Services
ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
