FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss

FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical patch Connector
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Return Loss (dB): ≥ 55 Operating Temperature (℃): -20 ~ +85
Highlight:

patch connector

,

patch cord connector

Product Description

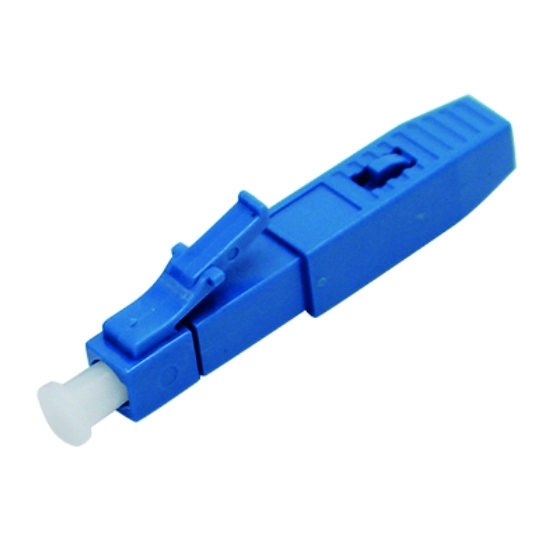

FAST Field Series LC Fiber Optical Patch Connector
Professional fiber optic connector for high-density connections, SFP and SFP+ transceivers, and XFP transceivers applications.
Product Overview
ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optical fibers or optical cables to form a continuous optical path. Widely used in optical fiber transmission lines, distribution frames, and testing instruments, it represents one of the most essential optical passive devices in current use.
Hangzhou Zion Communication Co., Ltd. supplies connectors with high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them your optimal choice for reliable performance.
Product Images
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 0 FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 1 FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 2 FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 3
Product Identification
Zion Code Zion Description
7234017 FAST Field Series LC Fiber Optical Patch Connector
LC FAST Field Fiber Optic Connector Specifications
Parameter FC, SC, LC ST, MU, MTRJ
Operating Wavelength (nm) 1310-1550 / 850-1300 1310-1550 / 850-1300
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 / ≥ 60 / ≥ 35 ≥ 50 / ≥ 35
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensile Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (°C) -20 to +85 -20 to +85
Storage Temperature (°C) -40 to +85 -40 to +85
Related Fiber Optic Connector Products
Zion Code Zion Description
7234001 LC SX 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234002 LC DX 2.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234003 LC Uniboot Fiber Optical Patch Connector
7234004 SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234005 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234006 SC APC Flat Drop Cable Fiber Optical Patch Connector
7234007 FC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234008 FC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234009 ST 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234010 ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234011 MU 0.9mm Series Fiber Optical Patch Connector
7234012 MTRJ Series Fiber Optical Patch Connector
7234013 E2000 0.9mm Series Fiber Optical Patch Connector
7234014 MPO Series Fiber Optical Patch Connector
7234015 FAST Field Series FC Fiber Optical Connector
7234016 FAST Field Series SC Fiber Optical Connector
7234017 FAST Field Series LC Fiber Optical Connector
Connector Types & Applications
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 4
LC Connector
(Lucent Connector/Little Connector/Local Connector)
Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 5
SC Connector
(Subscriber Connector/Square Connector/Standard Connector)
Typical Applications: Telecom, GPON, EPON, GBIC
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 6
FC Connector
(Ferrule Connector)
Typical Applications: Datacom, telecom, measurement equipment, single mode lasers
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 7
ST Connector
(Straight Tip)
Typical Applications: Datacom
OEM/ODM Services
ZION Communication has extensive experience in producing OEM/ODM cases with our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Colors & Lengths Available
Featured Products
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 8
7234022 - SC APC Hot-Melt Fast Connector
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 9
7234021 - SC APC Hot-Melt Fast Connector
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 10
7234020 - LC Straight-through Fast Connector
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 11
7234018 - FAST Field FC Hot-Melt Fiber Optical Connector
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 12
7234019 - LC Pre-embedded Fast Connector
FAST Field Series LC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 13
7234017 - FAST Field Series LC Fiber Optic Connector
