FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss

FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical patch Connector
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Return Loss (dB): ≥ 55 Operating Temperature (℃): -20 ~ +85
Highlight:

patch connector

,

patch cord connector

Product Description

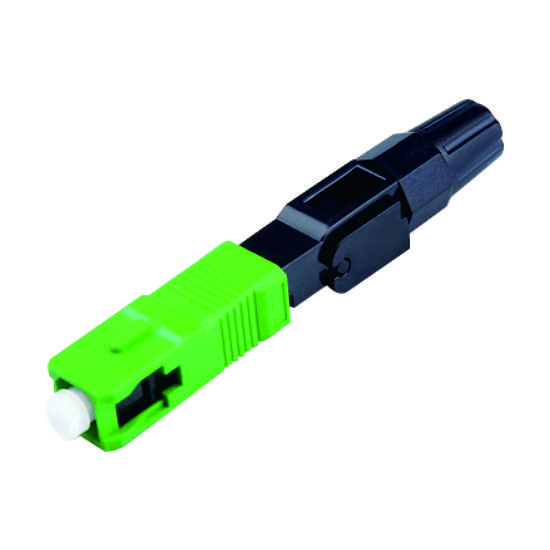

FAST Field Series SC Fiber Optical Patch Connector
ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optical fibers or optical cables to form a continuous optical path. It has been widely used in optical fiber transmission lines, optical fiber distribution frames, and optical fiber testing instruments and meters.
FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 0 FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 1 FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 2 FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 3
Product Specifications
Parameter FC, SC, LC ST, MU, MTRJ
Operating Wavelength (nm) 1310-1550 / 850-1300 1310-1550 / 850-1300
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 / ≥ 60 ≥ 35 / ≥ 50
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensile Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (°C) -20 to +85 -20 to +85
Storage Temperature (°C) -40 to +85 -40 to +85
Product Features
  • High flame retardancy for enhanced safety
  • Low insertion loss for optimal signal transmission
  • High durability for long-term reliability
  • Wide operating temperature range
  • Available in multiple connector types: SC, LC, FC, ST, MU, MTRJ, MPO, E-2000
Product Variants
Zion Code Description
7234001 LC SX 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234002 LC DX 2.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234003 LC Uniboot Fiber Optical Patch Connector
7234004 SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234005 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234006 SC APC Flat Drop Cable Fiber Optical Patch Connector
7234007 FC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234008 FC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234009 ST 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234010 ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234011 MU 0.9mm Series Fiber Optical Patch Connector
7234012 MTRJ Series Fiber Optical Patch Connector
7234013 E2000 0.9mm Series Fiber Optical Patch Connector
7234014 MPO Series Fiber Optical Patch Connector
7234015 FAST Field Series FC Fiber Optical Patch Connector
7234016 FAST Field Series SC Fiber Optical Patch Connector
7234017 FAST Field Series LC Fiber Optical Patch Connector
Connector Types & Applications
LC Connector: High density connections, SFP and SFP+ transceivers, XFP transceivers
FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 4
SC Connector: Telecom, GPON, EPON, GBIC applications
FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 5
FC Connector: Datacom, telecom, measurement equipment, single mode lasers
FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 6
ST Connector: Datacom applications
FAST Field Series SC Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 7
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Length Options Available
