MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss

MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical patch Connector
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Return Loss (dB): ≥ 55 Operating Temperature (℃): -20 ~ +85
Highlight:

patch connector

,

patch cord connector

Product Description

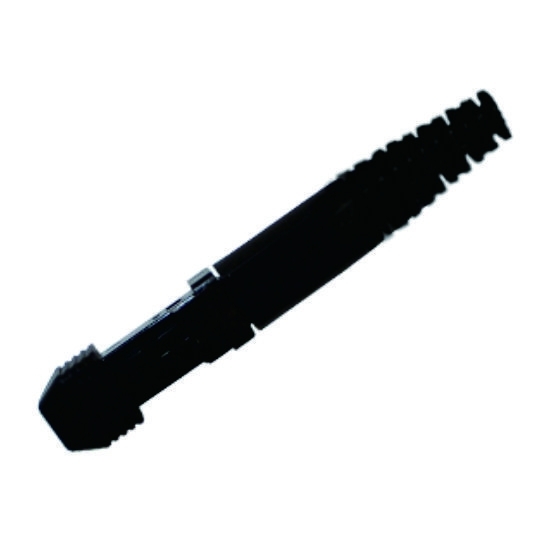

MTRJ Series Fiber Optical Patch Connector
ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optical fibers or optical cables to form a continuous optical path. It has been widely used in optical fiber transmission lines, optical fiber distribution frames, and optical fiber testing instruments. These connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range.
Inquire Now
MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 0 MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 1 MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 2 MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 3
Product Specifications
Technical Parameters
Parameter FC, SC, LC ST, MU, MTRJ
Operating Wavelength (nm) 1310-1550 / 850-1300 1310-1550 / 850-1300
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 / ≥ 60 / ≥ 35 ≥ 50 / ≥ 35
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensile Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (°C) -20 to +85 -20 to +85
Storage Temperature (°C) -40 to +85 -40 to +85
Product Variants
Zion Communication Fiber Optic Connectors
Zion Code Zion Description
7234001LC SX 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234002LC DX 2.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234003LC Uniboot Fiber Optical Patch Connector
7234004SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234005SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234006SC APC Flat Drop Cable Fiber Optical Patch Connector
7234007FC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234008FC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234009ST 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234010ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
7234011MU 0.9mm Series Fiber Optical Patch Connector
7234012MTRJ Series Fiber Optical Patch Connector
7234013E2000 0.9mm Series Fiber Optical Patch Connector
7234014MPO Series Fiber Optical Patch Connector
7234015FAST Field Series FC Fiber Optical Patch Connector
7234016FAST Field Series SC Fiber Optical Patch Connector
7234017FAST Field Series LC Fiber Optical Patch Connector
Connector Types & Applications
MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 4
LC Connector
Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers
MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 5
SC Connector
Typical Applications: Telecom, GPON, EPON, GBIC
MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 6
FC Connector
Typical Applications: Datacom, telecom, measurement equipment, single mode lasers
MTRJ Series Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 7
ST Connector
Typical Applications: Datacom
OEM/ODM Services
ZION Communication has extensive experience in producing OEM/ODM cases with our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Colors & Lengths Available
