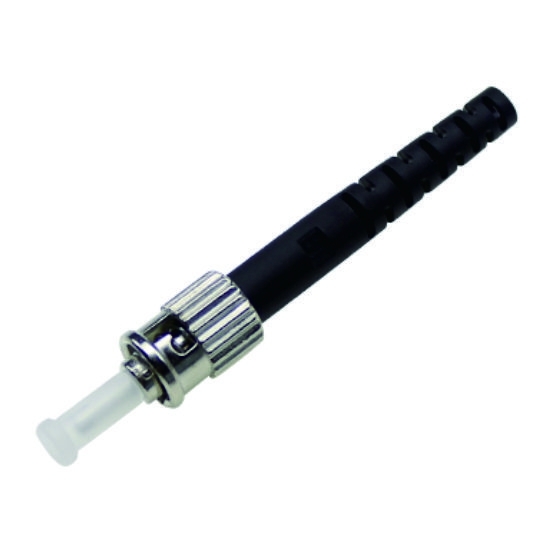

ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical patch Connector
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Return Loss (dB): ≥ 55 Operating Temperature (℃): -20 ~ +85
High Light:

patch connector

,

patch cord connector


Product Description





SC LC FC ST/APC UPC SX/DX 0.9/2.0/3.0mm Pre-polished Ferrule/FAST Field Assembly OPTIC PATCH CONNECTOR

FIBER OPTIC CONNECTOR









ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 1 ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 2
                                                                          ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 3

Zion Code and Description

Zion Code Zion Description
7234010 ST 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector

Description

ZION COMMUNICATIONS’ Fiber Optic Connector is a reusable passive device used to connect two optical fibers or optical cables to form a continuous optical path. It has been widely used in optical fiber transmission lines, optical fiber distribution frames, and optical fiber testing instruments and meters. It is currently in use. The most optical passive devices.The Connectors supplied by Hangzhou Zion Communication Co., Ltd. have high flame retardancy, low insertion loss, high durability, and wide operating temperature. It is your best choice.

ST 2.0/3.0mm Fiber Optical patch Connector

ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 4

ST 0.9/2.0/3.0

ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 5

ST Boot 0.9mm/2.0mm/3.0mm

ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 6

Characteristics:

Parameter FC, SC, LC ST, MU, MTRJ
SM MM SM MM
(OS2) (OM1,2,3,4)
UPC APC UPC/APC UPC UPC
Operating Wavelength(nm) 1310-1550 850-1300 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 ≥ 60 ≥ 35 ≥ 50 ≥ 35
Repeatability (dB) ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Tensil Strength (N) ≥ 1000 ≥ 1000 ≥ 1000 ≥ 1000 ≥ 1000
Operating Temperature (℃) -20 ~ +85 -20 ~ +85 -20 ~ +85 -20 ~ +85 -20 ~ +85
Storage Temperature (℃) -40 ~ +85 -40 ~ +85 -40 ~ +85 -40 ~ +85 -40 ~ +85

ST Series Selection Table

ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 7

Zion Communication’s Hot Fiber Optical patch Connector

Zion Code Zion Description
7234001 LC SX 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234002 LC DX 2.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234003 LC Uniboot Fiber Optical patch Connector
7234004 SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234005 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234006 SC APC Flat Drop Cable Fiber Optical patch Connector
7234007 FC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234008 FC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234009 ST 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234010 ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234011 MU 0.9mm Series Fiber Optical patch Connector
7234012 MTRJ Series Fiber Optical patch Connector
7234013 E2000 0.9mm Series Fiber Optical patch Connector
7234014 MPO Series Fiber Optical patch Connector
7234015 FAST Field Series FC Fiber Optical patch Connector
7234016 FAST Field Series SC Fiber Optical patch Connector
7234017 FAST Field Series LC Fiber Optical patch Connector

Connector Type LC, SC, FC, ST,MU, MTRJ,MPO,E-2000
ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 8 LC ( Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections,
SFP and SFP+ transceivers, XFP transceivers
ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 9 SC ( Subscriber Connector/Square Connector/Standard Connector)
Typical Application:
Telecom,GPON,EPON,GBIC
ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 10 FC ( Ferrule Connector)
Typical Application:
Datacom,telecom,measurement,equipment,single mode lasers
ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector 11 ST ( Straight Tip)
Typical Application: Datacom


OEM/ODM service for you

ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available
