SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss

SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical patch Connector
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Return Loss (dB): ≥ 55 Operating Temperature (℃): -20 ~ +85
Highlight:

fiber optical patch connector

,

patch connector

Product Description

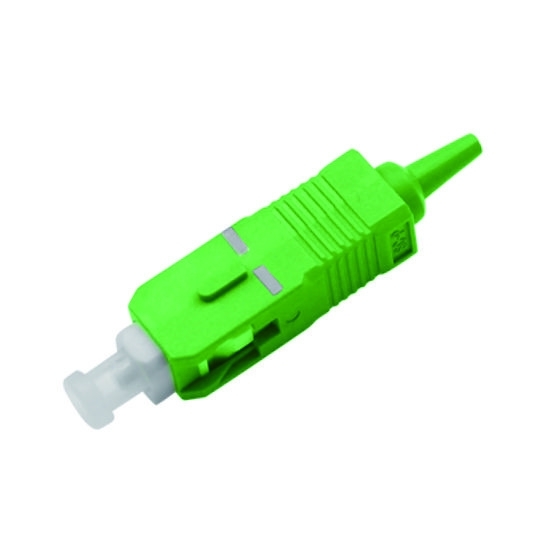

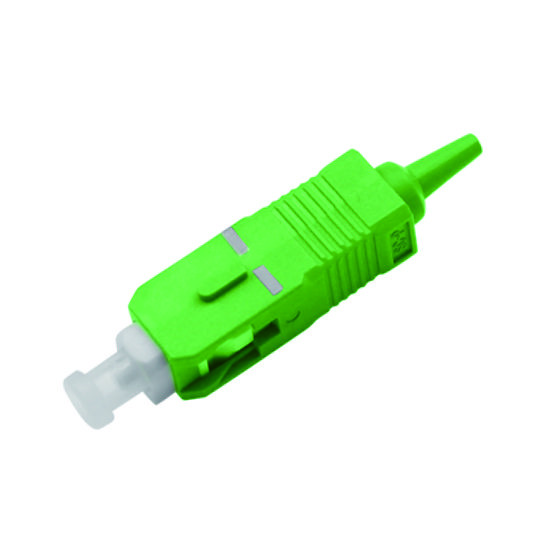

SC APC Flat Drop Cable Fiber Optical Patch Connector
ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optical fibers or optical cables to form a continuous optical path. It has been widely used in optical fiber transmission lines, optical fiber distribution frames, and optical fiber testing instruments and meters.
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 0 SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 1
Product Identification
Zion Code Zion Description
7234006 SC APC Flat Drop Cable Fiber Optical patch Connector
Product Overview
This fiber optic connector is currently one of the most widely used optical passive devices. The connectors supplied by Hangzhou Zion Communication Co., Ltd. feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them your optimal choice for reliable fiber optic connections.
SC APC Optical Patch Connector Dimensions
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 2
SC 0.9/2.0/3.0mm Connectors
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 3
SC Boot Universal Tail Sleeve
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 4
Technical Specifications
Parameter FC, SC, LC ST, MU, MTRJ
Operating Wavelength (nm) 1310-1550 / 850-1300 1310-1550 / 850-1300
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 / ≥ 60 / ≥ 35 ≥ 50 / ≥ 35
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensile Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (°C) -20 to +85 -20 to +85
Storage Temperature (°C) -40 to +85 -40 to +85
SC Dust Cap and Ferrule
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 5
SC Series Selection Guide
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 6
Related Fiber Optic Connector Products
Zion Code Zion Description
7234001 LC SX 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234002 LC DX 2.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234003 LC Uniboot Fiber Optical patch Connector
7234004 SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234005 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234007 FC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234008 FC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234009 ST 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234010 ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234011 MU 0.9mm Series Fiber Optical patch Connector
7234012 MTRJ Series Fiber Optical patch Connector
7234013 E2000 0.9mm Series Fiber Optical patch Connector
7234014 MPO Series Fiber Optical patch Connector
7234015 FAST Field Series FC Fiber Optical patch Connector
7234016 FAST Field Series SC Fiber Optical patch Connector
7234017 FAST Field Series LC Fiber Optical patch Connector
Connector Types and Applications
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 7
LC Connector
Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 8
SC Connector
Typical Applications: Telecom, GPON, EPON, GBIC
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 9
FC Connector
Typical Applications: Datacom, telecom, measurement equipment, single mode lasers
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 10
ST Connector
Typical Applications: Datacom
OEM/ODM Services
ZION Communication has extensive experience in producing OEM/ODM cases thanks to our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Colors & Different Lengths Available
Featured Optical Components
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 11
7234022
SC APC Hot-Melt Fast Connector
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 12
7234021
SC APC Hot-Melt Fast Connector
SC APC Flat Drop Cable Fiber Optic Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 13
7234020
LC Straight-through Fast Connector
