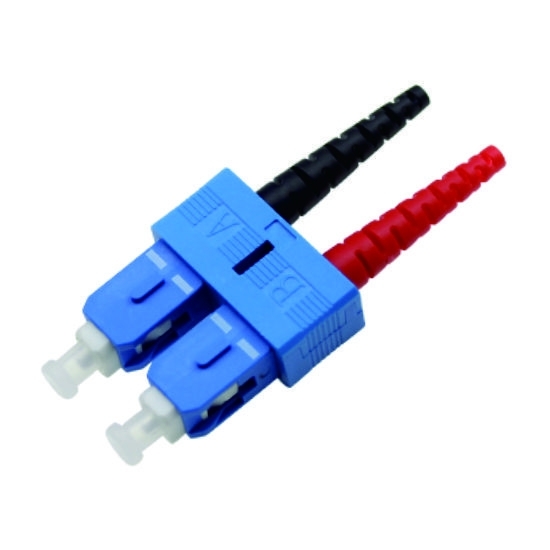

SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength

SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength
SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength
SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical patch Connector
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Return Loss (dB): ≥ 55 Operating Temperature (℃): -20 ~ +85
Highlight:

fiber optical patch connector

,

patch connector

Product Description

SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optical fibers or optical cables to form a continuous optical path. It has been widely used in optical fiber transmission lines, optical fiber distribution frames, and optical fiber testing instruments and meters. These connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them an excellent choice for various applications.
SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 0 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 1 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 2 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 3
Product Identification
Zion Code Zion Description
7234005 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
Technical Specifications
Performance Characteristics
Parameter FC, SC, LC ST, MU, MTRJ
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 ≥ 35
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensile Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (°C) -20 to +85 -20 to +85
Storage Temperature (°C) -40 to +85 -40 to +85
Product Dimensions
SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 4 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 5 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 6 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 7 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 8
Related Products
Zion Code Zion Description
7234001 LC SX 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234002 LC DX 2.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234003 LC Uniboot Fiber Optical patch Connector
7234004 SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234005 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234006 SC APC Flat Drop Cable Fiber Optical patch Connector
7234007 FC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234008 FC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234009 ST 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234010 ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
7234011 MU 0.9mm Series Fiber Optical patch Connector
7234012 MTRJ Series Fiber Optical patch Connector
7234013 E2000 0.9mm Series Fiber Optical patch Connector
7234014 MPO Series Fiber Optical patch Connector
7234015 FAST Field Series FC Fiber Optical patch Connector
7234016 FAST Field Series SC Fiber Optical patch Connector
7234017 FAST Field Series LC Fiber Optical patch Connector
Connector Types and Applications
Connector Type Description
SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 9 LC (Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections, SFP and SFP+ transceivers, XFP transceivers
SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 10 SC (Subscriber Connector/Square Connector/Standard Connector)
Typical Application: Telecom, GPON, EPON, GBIC
SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 11 FC (Ferrule Connector)
Typical Application: Datacom, telecom, measurement, equipment, single mode lasers
SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for 1310-1550 nm Wavelength 12 ST (Straight Tip)
Typical Application: Datacom
OEM/ODM Services
ZION Communication has extensive experience in producing OEM/ODM cases thanks to our professional R&D team.
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
