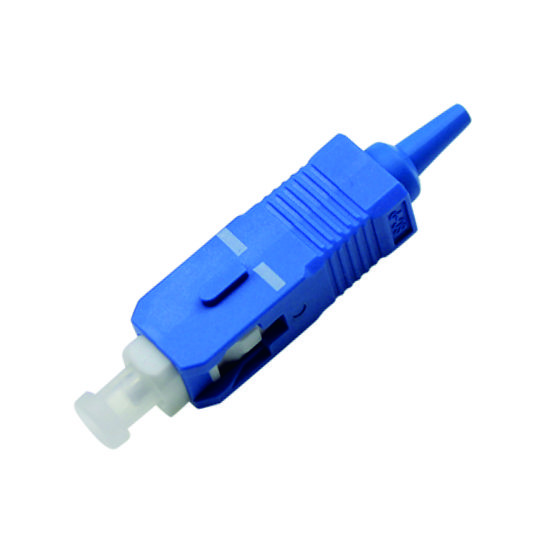

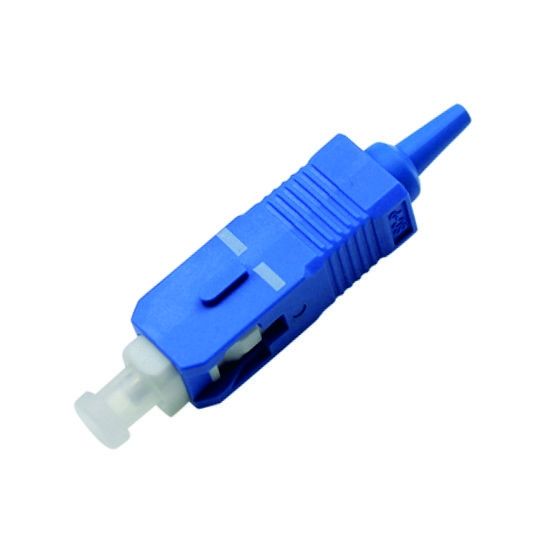

SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications

SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical patch Connector
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Return Loss (dB): ≥ 55 Operating Temperature (℃): -20 ~ +85
Highlight:

fiber optical patch connector

,

patch connector

Product Description

SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical Patch Connector
ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optical fibers or optical cables to form a continuous optical path. It has been widely used in optical fiber transmission lines, optical fiber distribution frames, and optical fiber testing instruments and meters. These connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range.
Inquire Now
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 0 SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 1 SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 2 SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 3
Product Identification
Zion Code Zion Description
7234004 SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optical patch Connector
Technical Specifications
Parameter FC, SC, LC ST, MU, MTRJ
Operating Wavelength (nm) 1310-1550 / 850-1300 1310-1550 / 850-1300
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 / ≥ 60 ≥ 35 / ≥ 50
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensile Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (°C) -20 to +85 -20 to +85
Storage Temperature (°C) -40 to +85 -40 to +85
Product Dimensions
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 4
Connector Type Comparison
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 5 LC (Lucent Connector)
Typical Application: High density connections, SFP and SFP+ transceivers, XFP transceivers
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 6 SC (Subscriber Connector)
Typical Application: Telecom, GPON, EPON, GBIC
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 7 FC (Ferrule Connector)
Typical Application: Datacom, telecom, measurement equipment, single mode lasers
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 8 ST (Straight Tip)
Typical Application: Datacom
Related Products
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 9
7234022 - SC APC Hot-Melt Fast Connector
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 10
7234021 - SC APC Hot-Melt Fast Connector
SC 0.9mm Pre-polished Ferrule Field Assembly Fiber Optic Connector for Optical Patch Applications 11
7234020 - LC Straight-through Fast Connector
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
