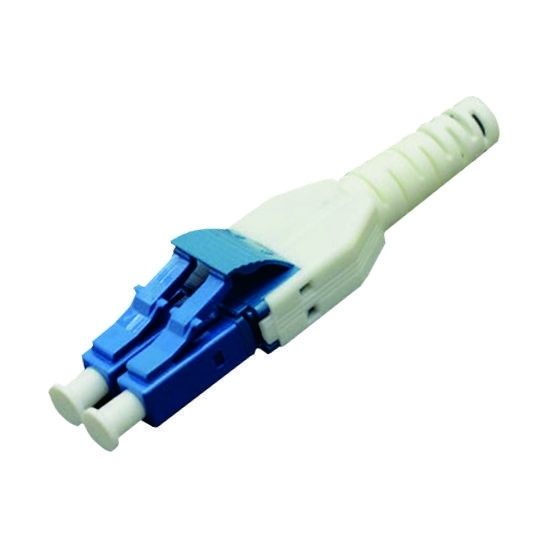

LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss

LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Fiber Optical patch Connector
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310-1550 Insertion Loss (dB): ≤ 0.3
Return Loss (dB): ≥ 55 Operating Temperature (℃): -20 ~ +85
Highlight:

fiber optical patch connector

,

patch connector

Product Description

LC Uniboot Fiber Optic Patch Connector
High-performance fiber optic connector designed for reliable optical fiber connections in transmission lines, distribution frames, and testing instruments.
Inquire Now LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 0 LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 1 LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 2
Product Identification
Zion Code Zion Description
7234003 LC Uniboot Fiber Optical Patch Connector
Product Overview
ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optical fibers or optical cables to form a continuous optical path. It has been widely used in optical fiber transmission lines, optical fiber distribution frames, and optical fiber testing instruments. Our connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range.
LC Uniboot Connector Details
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 3
LC 0.9/2.0 DX/3.0 Configurations
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 4
LC Boot Options
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 5 LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 6
Technical Specifications
Parameter FC, SC, LC ST, MU, MTRJ
Operating Wavelength (nm) 1310-1550 / 850-1300 1310-1550 / 850-1300
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 / ≥ 60 / ≥ 35 ≥ 50 / ≥ 35
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensile Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (°C) -20 to +85 -20 to +85
Storage Temperature (°C) -40 to +85 -40 to +85
LC Dust Cap and Ferrule
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 7
LC Series Selection Guide
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 8
Related Fiber Optic Connectors
Zion Code Zion Description
7234001 LC SX 0.9mm Pre-polished Ferrule Field Assembly Connector
7234002 LC DX 2.0mm Pre-polished Ferrule Field Assembly Connector
7234003 LC Uniboot Fiber Optical Patch Connector
7234004 SC 0.9mm Pre-polished Ferrule Field Assembly Connector
7234005 SC 2.0/3.0mm Pre-polished Ferrule Field Assembly Connector
7234006 SC APC Flat Drop Cable Connector
7234007 FC 0.9mm Pre-polished Ferrule Field Assembly Connector
7234008 FC 2.0/3.0mm Pre-polished Ferrule Field Assembly Connector
7234009 ST 0.9mm Pre-polished Ferrule Field Assembly Connector
7234010 ST 2.0/3.0mm Pre-polished Ferrule Field Assembly Connector
7234011 MU 0.9mm Series Connector
7234012 MTRJ Series Connector
7234013 E2000 0.9mm Series Connector
7234014 MPO Series Connector
7234015 FAST Field Series FC Connector
7234016 FAST Field Series SC Connector
7234017 FAST Field Series LC Connector
Connector Types and Applications
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 9
LC Connector
Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 10
SC Connector
Typical Applications: Telecom, GPON, EPON, GBIC
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 11
FC Connector
Typical Applications: Datacom, telecom, measurement equipment, single mode lasers
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 12
ST Connector
Typical Applications: Datacom
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:
  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
LC Uniboot Fiber Optical Patch Connector with 1310-1550 nm Wavelength, ≤ 0.3 dB Insertion Loss, and ≥ 55 dB Return Loss 13
