Name: 1X32 PLC Fiber Optic Splitter LGX Module Single Mode for FTTH and PON Networks
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: Optical Splitter
Availability: InStock

Fiber Optic Splitter

Available in 1×4/1×8/1×16/1×32 configurations for Single Mode/Multimode applications with SC, LC, FC, ST/APC, UPC connectors using FBT/PLC technology.

Inquire Now 1X32 PLC Fiber Optic Splitter LGX Module Single Mode for FTTH and PON Networks 0

1X32 PLC Fiber Optic Splitter Applications

FTTH, LAN, PON & Optical CATV networks
Local ring networks and optical fiber communication systems
Optical fiber test equipment and fiber optic sensors

1X32 PLC Fiber Optic Splitter Specifications

PLC Splitter Type	1×32 PLC Splitter
Configuration Type	1×32
Operating Wavelength	1260~1650nm
Fiber Length	1.5m
Directivity	≥55 dB
Package Style	LGX Module
Fiber Type	Singlemode G657A1 or G652D
Fiber Diameter	0.9mm, 2.0mm, 3.0mm
Polarization Dependent Loss	≤0.3 dB
Wavelength Dependent Loss	≤0.5 dB
Typical Insertion Loss	≤16.2 dB
Insertion Loss	≤17.1 dB
Loss Uniformity	≤1.5 dB
Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
Sealing Package Dimension	130×100×102 mm
Connector Type	SC/APC, SC/UPC, LC, FC, ST
Brand	HELLOSIGNAL® OR OEM
Delivery Time	Normally 25 days after received deposit
Minimum Order Quantity	20 pieces

Introduction to 1X32 PLC Fiber Optic Splitter

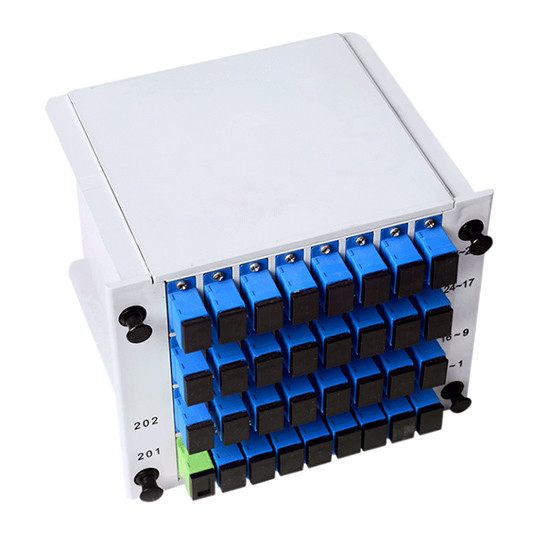

The Optical Splitter 1X32 LGX Single Mode PLC Splitter with SC adapters is designed to fit 19″ 3RU rack mounted fiber optic patch panels. Customizable with SC, LC, FC, ST connector types to meet specific requirements. This PLC type splitter enables high-density connections with ease.

Utilizing Planar Lightwave Circuit (PLC) technology for split ratios of 2, 4, 8, 16, 32, and 64. The optical splitter micro tube type features 0.9 mm slip-on fiber multi-channel direct output with a compact design for easy installation. Ideal for FTTX networks, LAN/WAN, and CATV network applications.

Optical Splitter 1X32 Detailed Images

Performance Specifications

Parameter	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength	1260~1650 nm
Fiber Type	G657A1 or Customized
Insertion Loss (P/S Grade)	3.8/4.0	7.2/7.4	10.3/10.7	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity	<0.4	<0.6	<0.8	<1.0	<1.5	<2.0	<2.5
PDL	<0.2	<0.2	<0.2	<0.3	<0.3	<0.4	<0.4
Return Loss	>55 dB
Directivity	>55 dB
Wavelength Dependent Loss	<0.5	<0.5	<0.5	<0.5	<1.0	<1.0	<1.0
Fiber Length	1m or Customized
Temperature Stability (-20~+80°C)	<0.5
Operating Temperature	-20℃ to +80℃
Storage Temperature	-40℃ to +80℃
Maximum Power Handling	500.0 mW

Note: Above specifications are for devices without connectors. Add an additional 0.2dB loss per connector.

Alternative Configuration Options

Port	Package	Fiber Diameter	Fiber Length	Connector
0102 = 1×2 0104 = 1×4 0108 = 1×8 0116 = 1×16 0132 = 1×32 0164 = 1×64 1128 = 1×128 0202 = 2×2 0204 = 2×4 0208 = 2×8 0216 = 2×16 0232 = 2×32 0264 = 2×64 2128 = 2×128	1 = Bare 2 = Blockless 3 = ABS Box Module 4 = Insert Box 5 = Pallet Type 6 = Rackmount Z = Customized	0 = 250 um 1 = 900 um 2 = 2.0mm 3 = 3.0mm	0 = 0.5m 1 = 1.0m 2 = 1.5m 3 = 2.0m 4 = 3.0m 5 = 4.0m Z = Customized	0 = None 1 = FC/APC 2 = FC/UPC 3 = SC/APC 4 = SC/UPC 5 = LC/APC 6 = LC/UPC 7 = ST Z = Customized
