1×64 Configuration PLC Fiber Splitter LGX Module with SC FC Connection for FTTH and PON Applications

1×64 Configuration PLC Fiber Splitter LGX Module with SC FC Connection for FTTH and PON Applications
1×64 Configuration PLC Fiber Splitter LGX Module with SC FC Connection for FTTH and PON Applications
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: PLC Fiber Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1260~1650nm Fiber Length: 1.5m
Operating Temperature (℃): -40 ～ 85 Connector Type: SC/APC,SC/UPC,LC FC ST
Highlight:

fiber optic splitter

,

plc optical splitter

Product Description

PLC Fiber Splitter 1×64 LGX Single Mode PLC Fiber Optic Splitter with SC FC Connection
Fiber Optic Splitter Overview
High-performance 1×4/1×8/1×16/1×32 Single Mode/Multimode PLC Fiber Optic Splitter with SC, LC, FC, ST, APC, and UPC connector options.
Inquire Now 1×64 Configuration PLC Fiber Splitter LGX Module with SC FC Connection for FTTH and PON Applications 0 1×64 Configuration PLC Fiber Splitter LGX Module with SC FC Connection for FTTH and PON Applications 1
1×64 PLC Fiber Optic Splitter Applications
  • FTTH, LAN, PON & Optical CATV networks
  • Local ring networks and optical fiber communication systems
  • Optical fiber test equipment and fiber optic sensors
1×64 PLC Fiber Optic Splitter Specifications
PLC Splitter Type1×64 PLC Splitter
Configuration Type1×64
Operating Wavelength1260~1650nm
Fiber Length1.5m
Directivity≥55 dB
Package StyleLGX Module
Fiber TypeSinglemode G657A1 or G652D
Fiber Diameter0.9mm, 2.0mm, 3.0mm
Polarization Dependent Loss≤0.4 dB
Wavelength Dependent Loss≤0.8 dB
Typical Insertion Loss≤19.7 dB
Insertion Loss≤21.2 dB
Loss Uniformity≤2.5 dB
Operating Temperature-40℃ to 85℃
Storage Temperature-40℃ to 85℃
Sealing Package Dimension130×180×102 mm
Connector TypeSC/APC, SC/UPC, LC, FC, ST
BrandHELLOSIGNAL® OR OEM
Delivery Time25 days after deposit received
Minimum Order Quantity20 pieces
Product Introduction

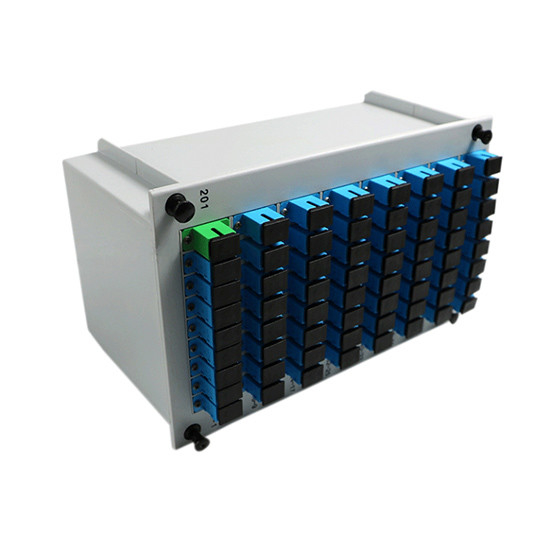

The PLC Fiber Splitter 1×64 LGX Single Mode PLC Fiber Optic Splitter with SC FC Connection features a steel-type 1×64 PLC splitter core. Customizable fiber optic adapters and connectors are available, with common configurations including SC, FC, and LC fiber connection types. This LGX module is designed for integration into 3RU rack-mounted fiber patch panels, providing efficient and organized fiber connectivity solutions.
Performance Specifications
Parameter 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength 1260~1650 nm
Insertion Loss (P/S Grade) 3.8/4.0 dB 7.2/7.4 dB 10.3/10.7 dB 13.5/13.7 dB 16.5/16.9 dB 20.5/21.0 dB 23.8/24.2 dB
Loss Uniformity <0.4 dB <0.6 dB <0.8 dB <1.0 dB <1.5 dB <2.0 dB <2.5 dB
Polarization Dependent Loss <0.2 dB <0.2 dB <0.2 dB <0.3 dB <0.3 dB <0.4 dB <0.4 dB
Return Loss >55 dB
Directivity >55 dB
Wavelength Dependent Loss <0.5 dB <0.5 dB <0.5 dB <0.5 dB <1.0 dB <1.0 dB <1.0 dB
Note: Above specifications are for devices without connectors. Add an additional 0.2dB loss per connector.
Alternative Configuration Options
Port Package Fiber Diameter Fiber Length Connector
0102 = 1×2
0104 = 1×4
0108 = 1×8
0116 = 1×16
0132 = 1×32
0164 = 1×64
1128 = 1×128		 1 = Bare
2 = Blockless
3 = ABS Box Module
4 = Insert Box
5 = Pallet Type
6 = Rackmount
Z = Customized		 0 = 250 um
1 = 900 um
2 = 2.0mm
3 = 3.0mm		 0 = 0.5m
1 = 1.0m
2 = 1.5m
3 = 2.0m
4 = 3.0m
5 = 4.0m
Z = Customized		 0 = None
1 = FC/APC
2 = FC/UPC
3 = SC/APC
4 = SC/UPC
5 = LC/APC
6 = LC/UPC
7 = ST
Z = Customized
PLC Splitter 1×16 Single Mode Blockless
