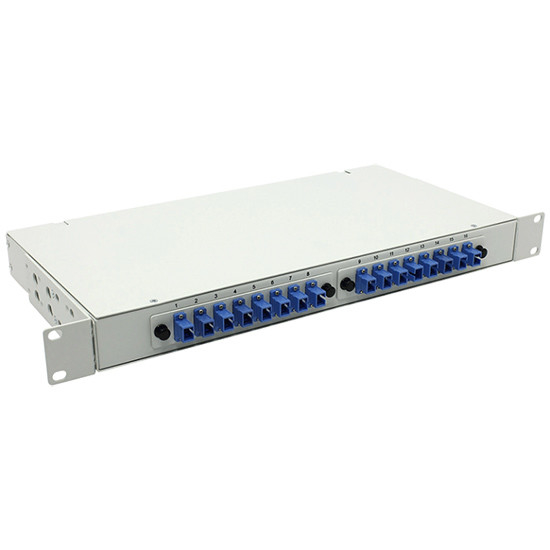

1×16 PLC Fiber Optic Splitter Rack Mounted ODF Type Single Mode with SC Fiber Adapters

1×16 PLC Fiber Optic Splitter Rack Mounted ODF Type Single Mode with SC Fiber Adapters
1×16 PLC Fiber Optic Splitter Rack Mounted ODF Type Single Mode with SC Fiber Adapters
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: Fiber Optic Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1260~1650nm Fiber Length: 1m
Operating Temperature (℃): -40 ～ 85 Connector Type: SC/APC,SC/UPC,LC FC ST
Highlight:

fiber optic splitter

,

plc optical splitter

Product Description

Fiber Optic Splitter 1×16 Rack Mounted ODF Type
Single Mode PLC Fiber Optic Splitter with SC Fiber Adapters (7233218)
Product Overview
1×4/1×8/1×16/1×32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER
1×16 PLC Fiber Optic Splitter Rack Mounted ODF Type Single Mode with SC Fiber Adapters 0 1×16 PLC Fiber Optic Splitter Rack Mounted ODF Type Single Mode with SC Fiber Adapters 1
Applications
  • FTTH, LAN, PON & Optical CATV
  • Local ring net, Optical fiber communication system
  • Optical fiber test equipment, Optical fiber sensor
1×16 PLC Fiber Optic Splitter Specifications
PLC Splitter Type1×16 PLC Splitter
Configuration Type1×16
Operating Wavelength (nm)1260~1650nm
Fiber Length1m
Directivity (≥) dB55
Package Style19″ Rack Mounted ODF
Fiber TypeSinglemode G657A1 or G652D
Fiber Diameter0.9mm,2.0mm,3.0mm
Polarization Dependent Loss (≤) dB0.3
Wavelength Dependent Loss (≤) dB0.5
Typical Insertion Loss (≤) dB13.2
Insertion Loss (≤) dB13.7
Loss Uniformity (≤) dB1.2
Operating Temperature (℃)-40 ～ 85
Storage Temperature (℃)-40 ～ 85
Sealing Package Dimension (mm)485*75*195
Connector TypeSC/APC,SC/UPC,LC FC ST
BrandHELLOSIGNAL® OR OEM
Delivery timeNormally 25 days after received the deposit
MOQ20pcs
Product Introduction
Fiber Optic Splitter 1×16 Rack Mounted ODF Type Single Mode PLC Fiber Optic Splitter with SC Fiber Adapters is designed to install into a 19″ rack mounted optical distribution frame, with a SC/UPC fiber optic patch panel. You can connect the input and output easily. This Fiber Optic Splitter 1×16 comes with Single Mode Corning SMF-28e and connectorized with SC/UPC fiber connectors.
Performance Specifications
Parameter1×21×41×81×161×321×641×128
Operating Wavelength(mm)1260~1650
Fiber TypeG657A1 or Customized
Insertion Loss (dB) P/S Grade3.8/4.07.2/7.410.3/10.713.5/13.716.5/16.920.5/21.023.8/24.2
Loss Uniformity (dB)< 0.4< 0.6< 0.8< 1.0< 1.5< 2.0< 2.5
PDL(dB)< 0.2< 0.2< 0.2< 0.3< 0.3< 0.4< 0.4
Return Loss (dB)> 55
Directivity ( dB)> 55
Wavelength Dependent Loss (dB)< 0.5< 0.5< 0.5< 0.5< 1.0< 1.0< 1.0
Fiber Length (m)1m or Customized
Temperature Stability(- 20~+80°C)< 0.5
Operating Temperature (°C)- 20~+80
Storage Temperature (°C)- 40~+80
Maximum Power Handing(mW)500.0
Note: Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
Configuration Options
PortPackageFiber DiameterFiber LengthConnector
0102 = 1×2
0104 = 1×4
0108 = 1×8
0116 = 1×16
0132 = 1×32
0164 = 1×64
1128 = 1×128
0202 = 2×2
0204 = 2×4
0208= 2×8
0216 = 2×16
0232=2×32
0264 = 2×64
2128 = 2×128		 1=Bare
2=Blockless
3=ABS Box Module
4=lnsert Box
5=Pallet Type
6=Rackmount
Z=Customized		 0=250 um
1=900 um
2=2.0mm
3=3.0mm		 0=0.5m
1=1.0m
2=1.5m
3=2.0m
4=3.0m
5=4.0m
Z=Customized		 0=None
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/UPC
5=LC/APC
6=LC/UPC
7=ST
Z=Customized
1×16 PLC Fiber Optic Splitter Rack Mounted ODF Type Single Mode with SC Fiber Adapters 2
