1×4 Single Mode PLC Optical Splitter ABS Box Type with SC Connector for FTTH and LAN Applications

1×4 Single Mode PLC Optical Splitter ABS Box Type with SC Connector for FTTH and LAN Applications
1×4 Single Mode PLC Optical Splitter ABS Box Type with SC Connector for FTTH and LAN Applications
1×4 Single Mode PLC Optical Splitter ABS Box Type with SC Connector for FTTH and LAN Applications
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: PLC Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1260~1650nm Fiber Length: 1m Or 1.5m Or Requested
Operating Temperature (℃): -40 ～ 85 Connector Type: SC/APC,SC/UPC,LC FC ST
Highlight:

fiber optic splitter

,

plc optical splitter

Product Description

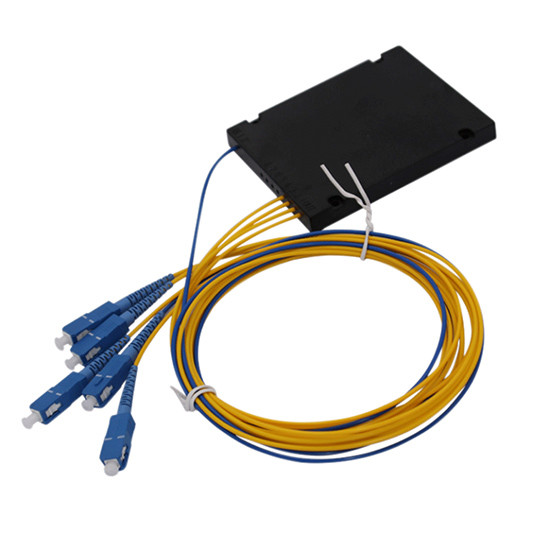

PLC Optical Splitter 1×4 Single Mode
ABS Box Type with SC Connector (7233213)
Product Overview
High-performance 1×4 PLC Fiber Optic Splitter designed for reliable signal distribution in fiber optic networks.
Inquire Now 1×4 Single Mode PLC Optical Splitter ABS Box Type with SC Connector for FTTH and LAN Applications 0 1×4 Single Mode PLC Optical Splitter ABS Box Type with SC Connector for FTTH and LAN Applications 1
Applications
  • FTTH (Fiber to the Home) networks
  • LAN (Local Area Networks)
  • PON (Passive Optical Networks) & Optical CATV
  • Local ring networks
  • Optical fiber communication systems
  • Optical fiber test equipment
  • Optical fiber sensors
Technical Specifications
ParameterSpecification
Configuration Type1×4
Operating Wavelength1260~1650nm
Fiber Length1m or 1.5m or Custom
Directivity≥55 dB
Package StyleABS Module
Fiber TypeSinglemode G657A1 or G652D
Fiber Diameter2.0mm, 3.0mm
Polarization Dependent Loss≤0.2 dB
Wavelength Dependent Loss≤0.3 dB
Typical Insertion Loss≤7 dB
Insertion Loss≤7.4 dB
Loss Uniformity≤0.6 dB
Operating Temperature-40℃ to 85℃
Storage Temperature-40℃ to 85℃
Sealing Package Dimension100×80×10 mm
Connector TypeSC/APC, SC/UPC, LC, FC, ST
BrandHELLOSIGNAL® OR OEM
Delivery Time25 days after deposit
Minimum Order Quantity20 pieces
Product Features
The 1×4 Single Mode PLC Splitter features exceptional performance with low insertion loss, minimal PDL, high return loss, and excellent uniformity across a broad wavelength range from 1260nm to 1620nm. Designed to operate reliably in temperatures from -40°C to +80°C, this ABS box type splitter typically includes 2.0mm or 3.0mm fiber cable at 1.5m length.
Performance Specifications
Comprehensive performance data for various PLC splitter configurations:
Parameter 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Insertion Loss (P/S Grade) 3.8/4.0 7.2/7.4 10.3/10.7 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity <0.4 <0.6 <0.8 <1.0 <1.5 <2.0 <2.5
PDL <0.2 <0.2 <0.2 <0.3 <0.3 <0.4 <0.4
Return Loss >55 >55 >55 >55 >55 >55 >55
Note: Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
Configuration Options
Customize your PLC splitter with various port configurations, packaging, fiber specifications, and connector types:
Port Package Fiber Diameter Fiber Length Connector
0102 = 1×2
0104 = 1×4
0108 = 1×8
0116 = 1×16
0132 = 1×32
0164 = 1×64
1128 = 1×128		 1=Bare
2=Blockless
3=ABS Box Module
4=Insert Box
5=Pallet Type
6=Rackmount
Z=Customized		 0=250 um
1=900 um
2=2.0mm
3=3.0mm		 0=0.5m
1=1.0m
2=1.5m
3=2.0m
4=3.0m
5=4.0m
Z=Customized		 0=None
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/UPC
5=LC/APC
6=LC/UPC
7=ST
Z=Customized
