Home > Products> Optical Fiber System> 1×8 PLC Fiber Optic Splitter ABS Box Type with SC Connector for FTTH and Optical Networks

1×8 PLC Fiber Optic Splitter ABS Box Type with SC Connector for FTTH and Optical Networks

1×8 PLC Fiber Optic Splitter ABS Box Type with SC Connector for FTTH and Optical Networks
1×8 PLC Fiber Optic Splitter ABS Box Type with SC Connector for FTTH and Optical Networks
1×8 PLC Fiber Optic Splitter ABS Box Type with SC Connector for FTTH and Optical Networks
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: PLC Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1260~1650nm Fiber Length: 1m Or 1.5m Or Requested
Operating Temperature (℃): -40 ～ 85 Connector Type: SC/APC,SC/UPC,LC FC ST
Highlight:

fiber optic splitter

,

plc optical splitter

Product Description

PLC Optical Splitter 1×8 Single Mode PLC Fiber Optic Splitter ABS Box Type with SC Connector
High-performance 1×8 PLC fiber optic splitter designed for reliable signal distribution in various network applications.
1×8 PLC Fiber Optic Splitter ABS Box Type with SC Connector for FTTH and Optical Networks 0 1×8 PLC Fiber Optic Splitter ABS Box Type with SC Connector for FTTH and Optical Networks 1
Applications
  • FTTH (Fiber to the Home) networks
  • LAN (Local Area Networks)
  • PON (Passive Optical Networks)
  • Optical CATV systems
  • Local ring networks
  • Optical fiber communication systems
  • Optical fiber test equipment
  • Optical fiber sensors
Product Specifications
ParameterSpecification
Configuration Type1×8
Operating Wavelength1260~1650nm
Fiber Length1m or 1.5m or Custom
Directivity≥55 dB
Package StyleABS Module
Fiber TypeSinglemode G657A1 or G652D
Fiber Diameter2.0mm, 3.0mm
Polarization Dependent Loss≤0.3 dB
Wavelength Dependent Loss≤0.3 dB
Typical Insertion Loss≤10.2 dB
Insertion Loss≤10.7 dB
Loss Uniformity≤0.8 dB
Operating Temperature-40℃ to 85℃
Storage Temperature-40℃ to 85℃
Package Dimension100×80×10 mm
Connector TypeSC/APC, SC/UPC, LC, FC, ST
BrandHELLOSIGNAL® OR OEM
Delivery Time25 days after deposit
Minimum Order Quantity20 pieces
Product Overview

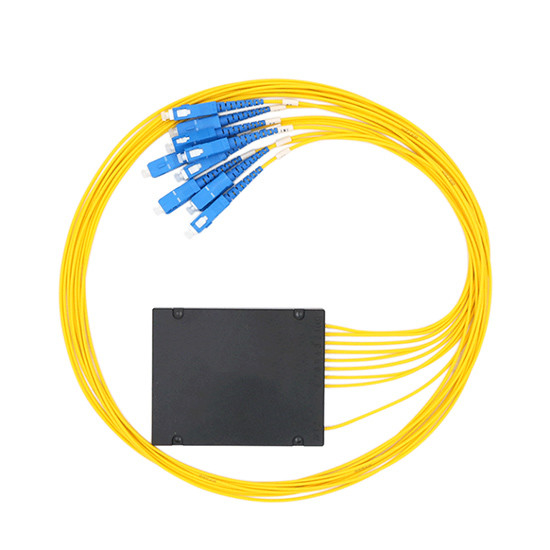

This 1×8 PLC fiber optic splitter features a steel tube type PLC enclosed in a durable ABS box with 2.0mm or 3.0mm loose tube fiber optic cable. The ruggedized design ensures reliable performance in various environmental conditions.
Performance Specifications
Splitter Type1×21×41×81×161×321×641×128
Insertion Loss (P/S Grade)3.8/4.07.2/7.410.3/10.713.5/13.716.5/16.920.5/21.023.8/24.2
Loss Uniformity<0.4<0.6<0.8<1.0<1.5<2.0<2.5
PDL<0.2<0.2<0.2<0.3<0.3<0.4<0.4
Return Loss>55>55>55>55>55>55>55
Note: Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
