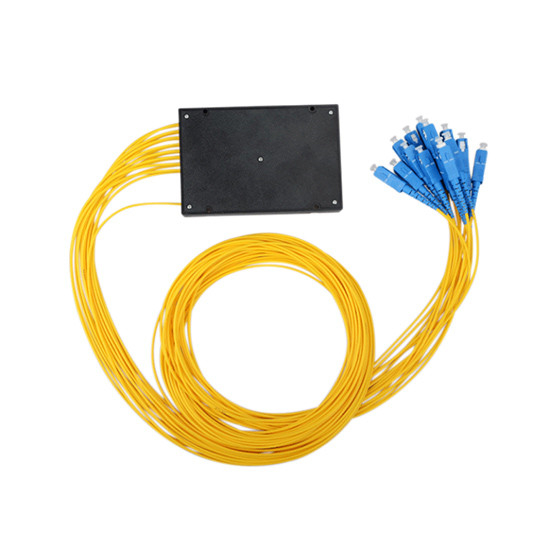

Name: 1×16 PLC Optical Splitter ABS Box Type with SC Connector for FTTH and PON Networks
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: PLC Splitter
Availability: InStock

PLC Optical Splitter 1×16 Single Mode PLC Fiber Optic Splitter ABS Box Type with SC Connector

Product Code: 7233211

Fiber Optic Splitter Overview

Available in 1×4, 1×8, 1×16, and 1×32 configurations for Single Mode and Multimode applications with SC, LC, FC, ST, APC, and UPC connectors. Choose between FBT and PLC technology.

Inquire Now 1×16 PLC Optical Splitter ABS Box Type with SC Connector for FTTH and PON Networks 0

1×16 PLC Fiber Optic Splitter Applications

FTTH, LAN, PON & Optical CATV networks
Local ring networks and optical fiber communication systems
Optical fiber test equipment and fiber optic sensors

1×16 PLC Fiber Optic Splitter Specifications

Parameter	Specification
Configuration Type	1×16
Operating Wavelength	1260~1650nm
Fiber Length	1m, 1.5m or custom length
Directivity	≥55 dB
Package Style	ABS Module
Fiber Type	Singlemode G657A1 or G652D
Fiber Diameter	2.0mm, 3.0mm
Polarization Dependent Loss	≤0.3 dB
Wavelength Dependent Loss	≤0.5 dB
Typical Insertion Loss	≤13.2 dB
Insertion Loss	≤13.7 dB
Loss Uniformity	≤1.2 dB
Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
Package Dimensions	120×80×18 mm
Connector Type	SC/APC, SC/UPC, LC, FC, ST
Brand	HELLOSIGNAL® or OEM
Delivery Time	25 days after deposit
Minimum Order Quantity	20 pieces

1×16 PLC Fiber Optic Splitter Introduction

This 1×16 Single Mode PLC Fiber Optic Splitter features a steel tube type PLC enclosed in an ABS box with 2.0mm or 3.0mm loose tube fiber optic cable. Teleweaver offers various box and cassette type splitter modules. The PLC Splitter Module is a rugged plastic ABS box with fiber jackets of 2mm to 3mm, available without connectors. Custom designs are available to meet specific customer requirements.

Performance Specifications

Parameter	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Insertion Loss (P/S Grade)	3.8/4.0	7.2/7.4	10.3/10.7	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity	<0.4	<0.6	<0.8	<1.0	<1.5	<2.0	<2.5
PDL	<0.2	<0.2	<0.2	<0.3	<0.3	<0.4	<0.4
Return Loss	>55	>55	>55	>55	>55	>55	>55
Directivity	>55	>55	>55	>55	>55	>55
Wavelength Dependent Loss	<0.5	<0.5	<0.5	<0.5	<1.0	<1.0	<1.0

Note: Above specifications are for devices without connectors. Add 0.2dB loss per connector.

Configuration Options

Port	Package	Fiber Diameter	Fiber Length	Connector
0102 = 1×2 0104 = 1×4 0108 = 1×8 0116 = 1×16 0132 = 1×32 0164 = 1×64 1128 = 1×128	1=Bare 2=Blockless 3=ABS Box Module 4=Insert Box 5=Pallet Type 6=Rackmount Z=Customized	0=250 um 1=900 um 2=2.0mm 3=3.0mm	0=0.5m 1=1.0m 2=1.5m 3=2.0m 4=3.0m 5=4.0m Z=Customized	0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST Z=Customized
