1×32 PLC Optical Splitter with 1260~1650nm Wavelength and ABS Box Type for Fiber Optic Networks

1×32 PLC Optical Splitter with 1260~1650nm Wavelength and ABS Box Type for Fiber Optic Networks
1×32 PLC Optical Splitter with 1260~1650nm Wavelength and ABS Box Type for Fiber Optic Networks
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: PLC Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1260~1650nm Fiber Length: 1m Or 1.5m Or Requested
Operating Temperature (℃): -40 ～ 85 Connector Type: SC/APC,SC/UPC,LC FC ST
Highlight:

fiber optic splitter

,

plc optical splitter

Product Description

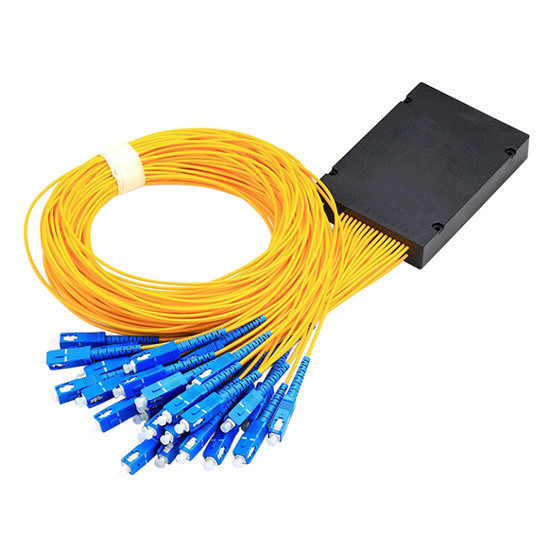

PLC Optical Splitter 1×32 Single Mode PLC Fiber Optic Splitter ABS Box Type with SC Connector
High-performance fiber optic splitter designed for reliable signal distribution in various network applications.
1×32 PLC Optical Splitter with 1260~1650nm Wavelength and ABS Box Type for Fiber Optic Networks 0 1×32 PLC Optical Splitter with 1260~1650nm Wavelength and ABS Box Type for Fiber Optic Networks 1
Applications
  • FTTH, LAN, PON & Optical CATV networks
  • Local ring networks and optical fiber communication systems
  • Optical fiber test equipment and fiber optic sensors
Product Specifications
ParameterSpecification
Configuration Type1×32
Operating Wavelength1260~1650nm
Fiber Length1m or 1.5m or Custom
Directivity≥55 dB
Package StyleABS Module
Fiber TypeSinglemode G657A1 or G652D
Fiber Diameter2.0mm, 3.0mm
Polarization Dependent Loss≤0.3 dB
Wavelength Dependent Loss≤0.5 dB
Typical Insertion Loss≤16.2 dB
Insertion Loss≤17.1 dB
Loss Uniformity≤1.5 dB
Operating Temperature-40℃ to 85℃
Storage Temperature-40℃ to 85℃
Package Dimensions120×80×18 mm
Connector TypeSC/APC, SC/UPC, LC, FC, ST
BrandHELLOSIGNAL® OR OEM
Delivery Time25 days after deposit
Minimum Order Quantity20 pieces
Product Overview
The PLC Optical Splitter 1×32 Single Mode Fiber Optic Splitter ABS Module Type with SC Connector features a steel tube type PLC housed in an ABS box with 2.0mm or 3.0mm loose tube fiber optic cable. This rugged PLC Splitter Module is designed for durability and reliability in various networking environments.
Performance Specifications
Configuration1×21×41×81×161×321×641×128
Insertion Loss (P/S Grade)3.8/4.07.2/7.410.3/10.713.5/13.716.5/16.920.5/21.023.8/24.2
Loss Uniformity<0.4<0.6<0.8<1.0<1.5<2.0<2.5
PDL<0.2<0.2<0.2<0.3<0.3<0.4<0.4
Return Loss>55>55>55>55>55>55>55
Directivity>55>55>55>55>55>55>55
Wavelength Dependent Loss<0.5<0.5<0.5<0.5<1.0<1.0<1.0
Configuration Options
PortPackageFiber DiameterFiber LengthConnector
0102 = 1×2
0104 = 1×4
0108 = 1×8
0116 = 1×16
0132 = 1×32
0164 = 1×64
1128 = 1×128		 1=Bare
2=Blockless
3=ABS Box Module
4=Insert Box
5=Pallet Type
6=Rackmount
Z=Customized		 0=250 um
1=900 um
2=2.0mm
3=3.0mm		 0=0.5m
1=1.0m
2=1.5m
3=2.0m
4=3.0m
5=4.0m
Z=Customized		 0=None
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/UPC
5=LC/APC
6=LC/UPC
7=ST
Z=Customized
