1×2 PLC Fiber Optic Splitter with SC/FC Connection for 1260~1650nm Wavelength Applications

1×2 PLC Fiber Optic Splitter with SC/FC Connection for 1260~1650nm Wavelength Applications
1×2 PLC Fiber Optic Splitter with SC/FC Connection for 1260~1650nm Wavelength Applications
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: PLC Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1260~1650nm Fiber Length: 1.5m Or Requested
Operating Temperature (℃): -40 ～ 85 Connector Type: SC/APC,SC/UPC,LC FC ST
Highlight:

fiber optic splitter

,

plc optical splitter

Product Description

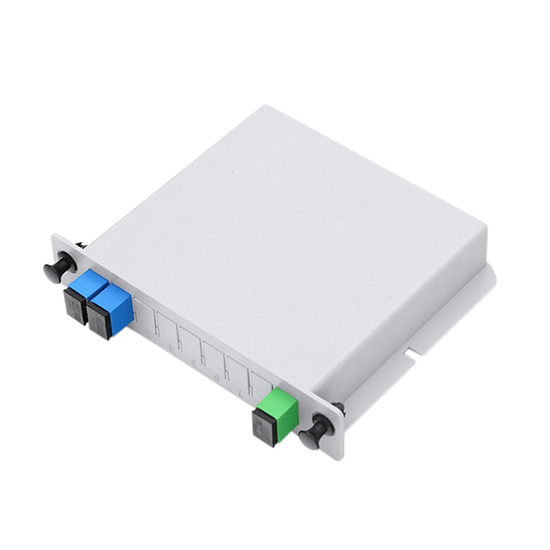

Fiber Optic Splitter 1×2 LGX Single Mode PLC with SC FC Connection
High-performance 1×2 PLC fiber optic splitter designed for LGX box installation with SC/FC output ports. This single-mode splitter delivers reliable signal distribution for various network applications.
Inquire Now 1×2 PLC Fiber Optic Splitter with SC/FC Connection for 1260~1650nm Wavelength Applications 0 1×2 PLC Fiber Optic Splitter with SC/FC Connection for 1260~1650nm Wavelength Applications 1
1×2 PLC Fiber Optic Splitter Applications
  • FTTH (Fiber to the Home) networks
  • LAN (Local Area Networks)
  • PON & Optical CATV systems
  • Local ring networks
  • Optical fiber communication systems
  • Optical fiber test equipment
  • Optical fiber sensors
1×2 PLC Fiber Optic Splitter Specifications
Parameter Specification
Configuration Type 1×2
Operating Wavelength 1260~1650nm
Fiber Length 1.5m or Customized
Directivity ≥55 dB
Package Style Blockless
Fiber Type Singlemode G657A1 or G652D
Fiber Diameter 0.9mm, 2.0mm, 3.0mm
Polarization Dependent Loss ≤0.2 dB
Wavelength Dependent Loss ≤0.3 dB
Typical Insertion Loss ≤3.9 dB
Insertion Loss ≤4.2 dB
Loss Uniformity ≤0.4 dB
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Package Dimension 130×100×25 mm
Connector Type SC/APC, SC/UPC, LC, FC, ST
Brand HELLOSIGNAL® or OEM
Delivery Time 25 days after deposit
Minimum Order Quantity 20 pieces
Product Overview
The Fiber Optic Splitter 1×2 LGX Single Mode PLC is a blockless splitter designed for installation inside LGX boxes with SC/FC or LC fiber adapter output ports. This unit is specifically engineered for use in 3RU fiber optic patch panels.
Planar Lightwave Circuit (PLC) splitters utilize advanced silica optical waveguide technology to deliver exceptional performance characteristics including compact size, high reliability, wide operating wavelength range, and superior channel-to-channel uniformity. These splitters are widely deployed in PON networks for efficient optical signal power distribution.
Performance Specifications
Parameter 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Insertion Loss (P/S Grade) 3.8/4.0 dB 7.2/7.4 dB 10.3/10.7 dB 13.5/13.7 dB 16.5/16.9 dB 20.5/21.0 dB 23.8/24.2 dB
Loss Uniformity <0.4 dB <0.6 dB <0.8 dB <1.0 dB <1.5 dB <2.0 dB <2.5 dB
PDL <0.2 dB <0.2 dB <0.2 dB <0.3 dB <0.3 dB <0.4 dB <0.4 dB
Return Loss >55 dB >55 dB >55 dB >55 dB >55 dB >55 dB >55 dB
Directivity >55 dB >55 dB >55 dB >55 dB >55 dB >55 dB >55 dB
Configuration Options
Port Package Fiber Diameter Fiber Length Connector
0102 = 1×2 1 = Bare 0 = 250 um 0 = 0.5m 0 = None
0104 = 1×4 2 = Blockless 1 = 900 um 1 = 1.0m 1 = FC/APC
0108 = 1×8 3 = ABS Box Module 2 = 2.0mm 2 = 1.5m 2 = FC/UPC
0116 = 1×16 4 = Insert Box 3 = 3.0mm 3 = 2.0m 3 = SC/APC
0132 = 1×32 5 = Pallet Type 4 = 3.0m 4 = SC/UPC
PLC Splitter 1×16 Single Mode Blockless
