1X8 Single Mode PLC Fiber Optic Splitter with SC FC Connection for FTTH and PON Networks

1X8 Single Mode PLC Fiber Optic Splitter with SC FC Connection for FTTH and PON Networks
1X8 Single Mode PLC Fiber Optic Splitter with SC FC Connection for FTTH and PON Networks
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: PLC Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1260~1650nm Fiber Length: 1.5m Or Requested
Bandwidth (nm): 20nm Operating Temperature (℃): -40 ～ 85
Connector Type: SC/APC,SC/UPC,LC FC ST
Highlight:

fiber optic splitter

,

plc optical splitter

Product Description

Optic Fiber Splitter 1X8 LGX Single Mode PLC Fiber Optic Splitter with SC FC Connection (7233206)
High-performance PLC fiber optic splitter designed for reliable signal distribution in fiber optic networks.
Inquire Now 1X8 Single Mode PLC Fiber Optic Splitter with SC FC Connection for FTTH and PON Networks 0 1X8 Single Mode PLC Fiber Optic Splitter with SC FC Connection for FTTH and PON Networks 1
Applications
  • FTTH (Fiber to the Home) networks
  • LAN (Local Area Networks)
  • PON (Passive Optical Networks) & Optical CATV
  • Local ring networks and optical fiber communication systems
  • Optical fiber test equipment and sensors
Product Specifications
PLC Splitter Type 1×8 PLC Splitter
Configuration Type 1×8
Operating Wavelength 1260~1650nm
Fiber Length 1.5m or Customized
Bandwidth 20nm
Package Style Blockless
Fiber Type Singlemode G657A1 or G652D
Fiber Diameter 0.9mm, 2.0mm, 3.0mm
Polarization Dependent Loss ≤ 0.3 dB
Wavelength Dependent Loss ≤ 0.3 dB
Typical Insertion Loss ≤ 10.2 dB
Insertion Loss ≤ 10.7 dB
Loss Uniformity ≤ 0.8 dB
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Sealing Package Dimension 130×100×25 mm
Connector Type SC/APC, SC/UPC, LC, FC, ST
Brand HELLOSIGNAL® OR OEM
Delivery Time 25 days after deposit received
Minimum Order Quantity 20 pieces
Product Overview

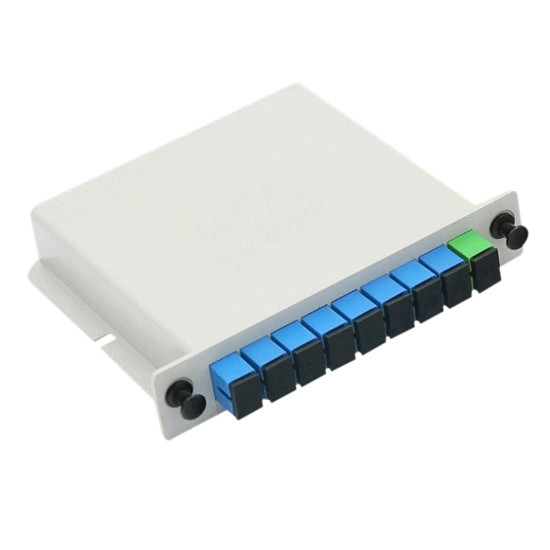

The Optic Fiber Splitter 1X8 LGX Single Mode PLC with SC FC Connection is a 1×8 blockless PLC splitter designed for installation in LGX boxes. This fiber optic splitter can be connectorized with SC, FC, or LC fiber connectors with corresponding fiber adapter ports.
PLC (Planar Lightwave Circuit) Splitters are single mode splitters with an even split ratio from one input fiber to multiple output fibers. This 1×8 PLC splitter provides 1 input and 8 output fibers with consistent split ratio across all fibers regardless of input wavelength. Available with 900µm loose tube singlemode fiber and offered terminated or unterminated according to your requirements.
Performance Specifications
Parameter 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength 1260~1650 nm
Insertion Loss (P/S Grade) 3.8/4.0 dB 7.2/7.4 dB 10.3/10.7 dB 13.5/13.7 dB 16.5/16.9 dB 20.5/21.0 dB 23.8/24.2 dB
Loss Uniformity < 0.4 dB < 0.6 dB < 0.8 dB < 1.0 dB < 1.5 dB < 2.0 dB < 2.5 dB
PDL < 0.2 dB < 0.2 dB < 0.2 dB < 0.3 dB < 0.3 dB < 0.4 dB < 0.4 dB
Return Loss > 55 dB
Note: Above specifications are for devices without connectors. Add an additional 0.2dB loss per connector.
