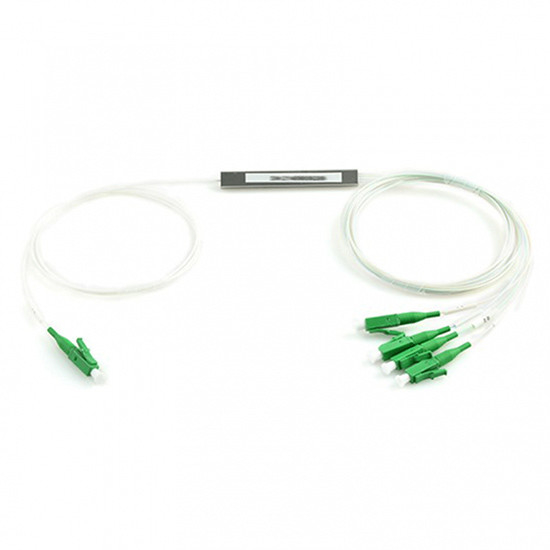

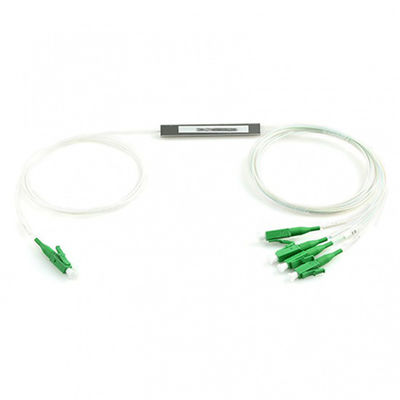

1×4 Single Mode Blockless PLC Splitter Fiber Optic Coupler for FTTH and Optical Communication

1×4 Single Mode Blockless PLC Splitter Fiber Optic Coupler for FTTH and Optical Communication
1×4 Single Mode Blockless PLC Splitter Fiber Optic Coupler for FTTH and Optical Communication
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: PLC Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1260~1650nm Fiber Length: 1m Or 1.5m Or Requested
Bandwidth (nm): 20nm Operating Temperature (℃): -40 ～ 85
Connector Type: SC/APC,SC/UPC,LC FC ST
Highlight:

fiber optic splitter

,

plc optical splitter

Product Description

PLC Splitter 1×4 Single Mode Blockless PLC Fiber Optic Coupler
High-performance fiber optic splitter with 1 input and 4 output fibers, designed for reliable signal distribution in optical networks.
1×4 Single Mode Blockless PLC Splitter Fiber Optic Coupler for FTTH and Optical Communication 0 1×4 Single Mode Blockless PLC Splitter Fiber Optic Coupler for FTTH and Optical Communication 1
Applications
  • FTTH (Fiber to the Home) networks
  • LAN (Local Area Networks)
  • PON (Passive Optical Networks) & Optical CATV
  • Local ring networks and optical fiber communication systems
  • Optical fiber test equipment and sensors
Technical Specifications
ParameterSpecification
Configuration Type1×4
Operating Wavelength1260~1650nm
Fiber Length1m, 1.5m or Custom
Bandwidth20nm
Package StyleBlockless
Fiber TypeSinglemode G657A1 or G652D
Fiber Diameter0.9mm
Polarization Dependent Loss≤ 0.2 dB
Wavelength Dependent Loss≤ 0.3 dB
Typical Insertion Loss≤ 7 dB
Insertion Loss≤ 7.4 dB
Loss Uniformity≤ 0.6 dB
Operating Temperature-40℃ to 85℃
Storage Temperature-40℃ to 85℃
Sealing Package Dimension50×4×4 mm
Blockless Package Dimension60×7×4 mm
Connector TypeSC/APC, SC/UPC, LC, FC, ST
BrandHELLOSIGNAL® OR OEM
Delivery Time25 days after deposit
Minimum Order Quantity20 pieces
Product Overview
This PLC Splitter 1×4 features single mode blockless design with 1 input and 4 output fibers, providing even split ratio across all fibers regardless of input wavelength. Available with 900µm loose tube singlemode fiber, these splitters can be supplied terminated or unterminated to meet your specific installation requirements.
Performance Specifications
Parameter1×21×41×81×161×321×641×128
Insertion Loss (P/S Grade)3.8/4.0 dB7.2/7.4 dB10.3/10.7 dB13.5/13.7 dB16.5/16.9 dB20.5/21.0 dB23.8/24.2 dB
Loss Uniformity< 0.4 dB< 0.6 dB< 0.8 dB< 1.0 dB< 1.5 dB< 2.0 dB< 2.5 dB
PDL< 0.2 dB< 0.2 dB< 0.2 dB< 0.3 dB< 0.3 dB< 0.4 dB< 0.4 dB
Return Loss> 55 dB> 55 dB> 55 dB> 55 dB> 55 dB> 55 dB> 55 dB
Note: Specifications are for devices without connectors. Add 0.2dB loss per connector.
Configuration Options
PortPackageFiber DiameterFiber LengthConnector
0102 = 1×2
0104 = 1×4
0108 = 1×8
0116 = 1×16
0132 = 1×32
0164 = 1×64
1128 = 1×128		1 = Bare
2 = Blockless
3 = ABS Box
4 = Insert Box
5 = Pallet Type
6 = Rackmount
Z = Customized		0 = 250 µm
1 = 900 µm
2 = 2.0mm
3 = 3.0mm		0 = 0.5m
1 = 1.0m
2 = 1.5m
3 = 2.0m
4 = 3.0m
5 = 4.0m
Z = Customized		0 = None
1 = FC/APC
2 = FC/UPC
3 = SC/APC
4 = SC/UPC
5 = LC/APC
6 = LC/UPC
7 = ST
Z = Customized
