1×2 PLC Splitter Single Mode Blockless Fiber Optic Coupler with 1260~1650nm Wavelength

1×2 PLC Splitter Single Mode Blockless Fiber Optic Coupler with 1260~1650nm Wavelength
1×2 PLC Splitter Single Mode Blockless Fiber Optic Coupler with 1260~1650nm Wavelength
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: PLC Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1260~1650nm Fiber Length: 1m Or 1.5m Or Requested
Bandwidth (nm): 20nm Operating Temperature (℃): -40 ～ 85
Connector Type: SC/APC,SC/UPC,LC FC ST
Highlight:

fiber optic splitter

,

plc optical splitter

Product Description

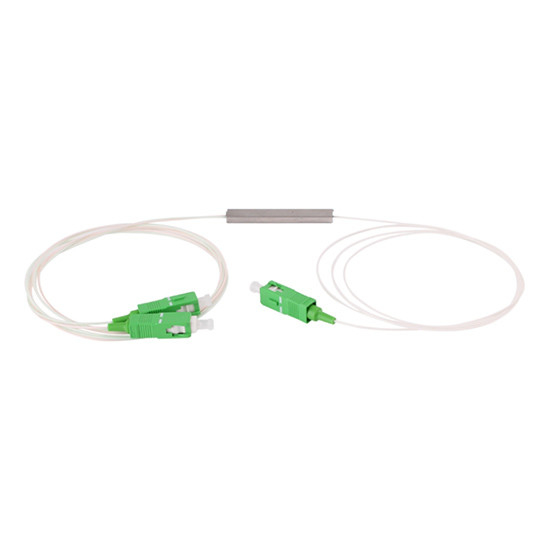

1×2 PLC Splitter Single Mode Blockless PLC Fiber Optic Coupler
High-performance fiber optic splitter with 1 input and 2 output fibers, designed for reliable signal distribution in optical networks.
1×2 PLC Splitter Single Mode Blockless Fiber Optic Coupler with 1260~1650nm Wavelength 0 1×2 PLC Splitter Single Mode Blockless Fiber Optic Coupler with 1260~1650nm Wavelength 1
Applications
  • FTTH, LAN, PON & Optical CATV networks
  • Local ring networks and optical fiber communication systems
  • Optical fiber test equipment and sensors
Product Specifications
ParameterSpecification
Configuration Type1×2
Operating Wavelength1260~1650nm
Fiber Length1m or 1.5m or Custom
Bandwidth20nm
Package StyleBlockless
Fiber TypeSinglemode G657A1 or G652D
Fiber Diameter0.9mm
Polarization Dependent Loss≤ 0.2 dB
Wavelength Dependent Loss≤ 0.3 dB
Typical Insertion Loss≤ 3.9 dB
Insertion Loss≤ 4.2 dB
Loss Uniformity≤ 0.4 dB
Operating Temperature-40℃ to 85℃
Storage Temperature-40℃ to 85℃
Connector TypeSC/APC, SC/UPC, LC, FC, ST
BrandHELLOSIGNAL® OR OEM
Delivery Time25 days after deposit
Minimum Order Quantity20 pieces
Product Overview
This 1×2 PLC Splitter features 1 input and 2 output fibers with an even split ratio across all fibers regardless of input wavelength. Available with 900µm loose tube singlemode fiber and terminated or unterminated configurations to meet your specific requirements.
Unconnectorized PLC splitters come without connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Performance Specifications
Parameter 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Insertion Loss (P/S Grade) 3.8/4.0 dB 7.2/7.4 dB 10.3/10.7 dB 13.5/13.7 dB 16.5/16.9 dB 20.5/21.0 dB 23.8/24.2 dB
Loss Uniformity < 0.4 dB < 0.6 dB < 0.8 dB < 1.0 dB < 1.5 dB < 2.0 dB
PDL < 0.2 dB < 0.2 dB < 0.2 dB < 0.3 dB < 0.3 dB < 0.4 dB < 0.4 dB
Note: Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
