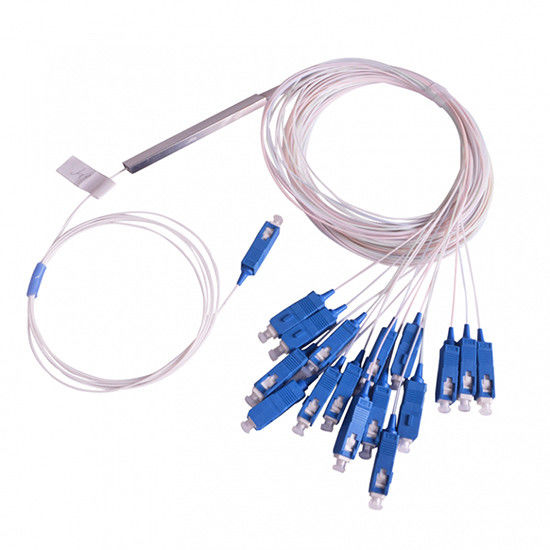

PLC Splitter 1×16 Single Mode Blockless 0.9mm Fiber Cable with SC/UPC SC/APC Connectors

PLC Splitter 1×16 Single Mode Blockless 0.9mm Fiber Cable with SC/UPC SC/APC Connectors
PLC Splitter 1×16 Single Mode Blockless 0.9mm Fiber Cable with SC/UPC SC/APC Connectors
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: PLC Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1260~1650nm Fiber Length: 1m Or 1.5m Or Requested
Bandwidth (nm): 20nm Operating Temperature (℃): -40 ～ 85
Connector Type: SC/APC,SC/UPC,LC FC ST
Highlight:

fiber optic splitter

,

plc optical splitter

Product Description

PLC Splitter 1×16 Single Mode Blockless

High-performance 0.9mm fiber cable with SC/UPC or SC/APC connectors (Product Code: 7233201)

Product Overview

Professional-grade fiber optic splitters available in 1×4, 1×8, 1×16, and 1×32 configurations. Compatible with both single mode and multimode fibers, featuring SC, LC, FC, ST connectors with APC/UPC polishing.

PLC Splitter 1×16 Single Mode Blockless 0.9mm Fiber Cable with SC/UPC SC/APC Connectors 0 PLC Splitter 1×16 Single Mode Blockless 0.9mm Fiber Cable with SC/UPC SC/APC Connectors 1
Applications
  • FTTH (Fiber to the Home) networks
  • LAN (Local Area Networks)
  • PON & Optical CATV systems
  • Local ring networks
  • Optical fiber communication systems
  • Optical fiber test equipment
  • Optical fiber sensors
Technical Specifications
Parameter Specification
Configuration Type 1×16
Operating Wavelength 1260~1650nm
Fiber Length 1m, 1.5m or Custom
Bandwidth 20nm
Package Style Blockless
Fiber Type Singlemode G657A1 or G652D
Fiber Diameter 0.9mm
Polarization Dependent Loss ≤ 0.3 dB
Wavelength Dependent Loss ≤ 0.5 dB
Typical Insertion Loss ≤ 13.2 dB
Maximum Insertion Loss ≤ 13.7 dB
Loss Uniformity ≤ 1.2 dB
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Package Dimensions 60×12×4 mm
Connector Types SC/APC, SC/UPC, LC, FC, ST
Brand HELLOSIGNAL® or OEM
Delivery Time 25 days after deposit
Minimum Order Quantity 20 pieces
Product Description

The PLC Splitter 1×16 Single Mode Blockless is a premium fiber optic splitter with an even split ratio from one input fiber to sixteen output fibers. This PLC splitter maintains consistent performance across all output fibers regardless of input wavelength. Available with 900µm loose tube singlemode fiber, these splitters can be supplied connectorized or unterminated to meet your specific installation requirements.

Performance Specifications
Parameter 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Insertion Loss (P/S Grade) 3.8/4.0 7.2/7.4 10.3/10.7 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) < 0.4 < 0.6 < 0.8 < 1.0 < 1.5 < 2.0 < 2.5
PDL (dB) < 0.2 < 0.2 < 0.2 < 0.3 < 0.3 < 0.4 < 0.4
Configuration Options
Port Package Fiber Diameter Fiber Length Connector
0102 = 1×2
0104 = 1×4
0108 = 1×8
0116 = 1×16
0132 = 1×32		 1 = Bare
2 = Blockless
3 = ABS Box
4 = Insert Box
5 = Pallet Type
6 = Rackmount
Z = Customized		 0 = 250 µm
1 = 900 µm
2 = 2.0mm
3 = 3.0mm		 0 = 0.5m
1 = 1.0m
2 = 1.5m
3 = 2.0m
4 = 3.0m
5 = 4.0m
Z = Customized		 0 = None
1 = FC/APC
2 = FC/UPC
3 = SC/APC
4 = SC/UPC
5 = LC/APC
6 = LC/UPC
7 = ST
Z = Customized
PLC Splitter 1×16 Product Close-up
