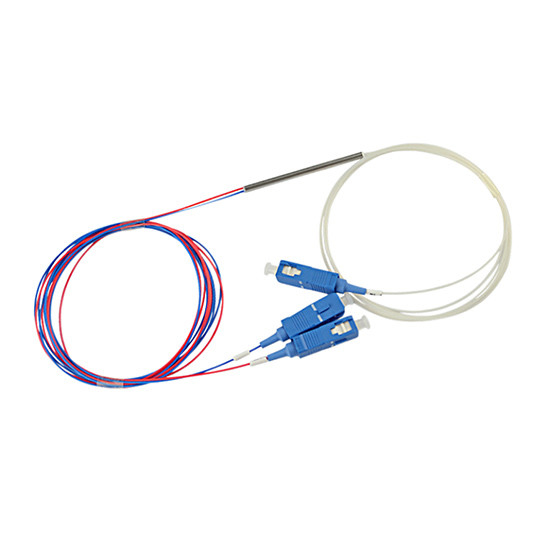

Name: Fiber Optic Splitter 1×2 Fiber Coupler with Loose Tube SC/UPC and Dual Window Fused Type for Precise Coupling
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: Fiber Optic Splitter
Availability: InStock

Product Overview

1×4/1×8/1×16/1×32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER

Applications

FTTH, LAN, PON & Optical CATV
Local ring net, Optical fiber communication system
Optical fiber test equipment, Optical fiber sensor

Technical Specifications

Input & Output	Fiber Optic Splitter 1×2 FBT
Fiber Type	9/125 SMF-28 or customer specified
Operating Wavelength (nm)	1310, 1490, 1550nm
Coupling Ratio (%)	1-50%
Bandwidth (nm)	20nm
Typical Insertion Loss (dB)	≤3.2
Polarization Dependent Loss (dB)	≤0.1
Homogeneity (dB)	≤0.9
Directivity (dBm)	≥60
Uniformity (dB)	0.5
Typical Dependent Loss (dB)	≤0.15
Temperature Stability (dB/ºC)	≤0.002
Operating Temperature (℃)	-40 to 70
Storage Temperature (℃)	-40 to 85
Fiber Cable	bare fiber, loose tube fiber
Fiber Connector	SC FC LC ST
Brand	HELLOSIGNAL® OR OEM
Delivery Time	Normally 25 days after received the deposit
MOQ	20pcs

Product Description

FBT Fiber Optic Splitter (also called fiber optical coupler) is a device that splits the fiber optic light into several parts by a certain ratio. Fiber Splitters are different from PLC fiber splitters in splitting methods. A fiber optic splitter can be produced with Singlemode, Multimode 62.5, and Multimode 50 Fiber. Also available with LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST connectors or unconnectorized.

When it comes to 1×2 Fiber Splitters, you can request different splitting ratios such as 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1.

Most optical splitters available in 900µm loose tube and 250µm bare fiber. 1×2 and 2×2 couplers come standard with a protective metal sleeve to cover the split. Higher output counts are built with a box to protect the splitting components.

Performance Specifications

Parameter	Wide Band Coupler	Dual Window Coupler	Multimode Fiber Coupler
Grade	P \| A	P \| A	P \| A
Operating Wavelength (nm)	1310,1550 or C + L Band	1310 and 1550	850 or 1310 or Specify
Operating Bandwidth (nm)	±40	±40	±40
Typical Excess Loss (dB)	<0.7 \| <0.1	<0.07 \| <0.1	<0.4 \| <0.7

Note: Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.

Related Products

Multimode Fiber Optic Splitter 1X2 ABS Box Fused Type Fiber Coupler FBT (7233101)

FBT Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

Optical Splitter 1×4 out ABS Box Single Mode Fused Type Optical Coupler FBT Fiber Optic Splitter (7233102)

FBT Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

Optical Components

ADSS Cable Products

All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath, Gel-filled, Self-supporting, Aramid Yarn| KEVLAR

FTTH Drop Cable

FTTH (fiber to the home) networks are installed in many areas covering indoor and outdoor sections and the transition in between.

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM
Model Number:	Fiber Optic Splitter

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Operating Wavelength (nm):	1310,1490,1550nm	Coupling Ration (%):	1-50%
Bandwidth (nm):	20nm	Operating Temperature (℃):	-40 ～ 70
Fiber Connector:	SC FC LC ST
Highlight:	multimode fiber optic splitter , multimode fiber splitter

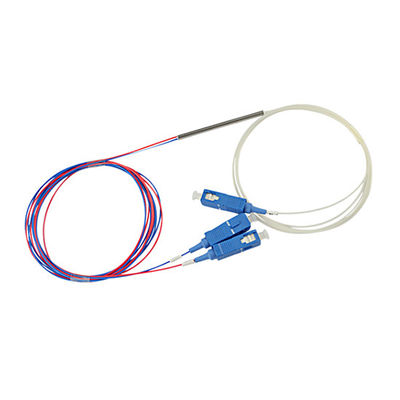

Fiber Optic Splitter 1×2 Fiber Coupler with Loose Tube SC/UPC and Dual Window Fused Type for Precise Coupling
