Steel Tube Single Mode 1×3 FBT Fiber Optic Splitter Optical Coupler for High-Performance Networks

Steel Tube Single Mode 1×3 FBT Fiber Optic Splitter Optical Coupler for High-Performance Networks
Steel Tube Single Mode 1×3 FBT Fiber Optic Splitter Optical Coupler for High-Performance Networks
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: Optic Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310,1490,1550nm Coupling Ration (%): 1-50%
Bandwidth (nm): 20nm Operating Temperature (℃): -40 ～ 70
Fiber Connector: SC FC LC ST
Highlight:

multimode fiber optic splitter

,

multimode fiber splitter

Product Description

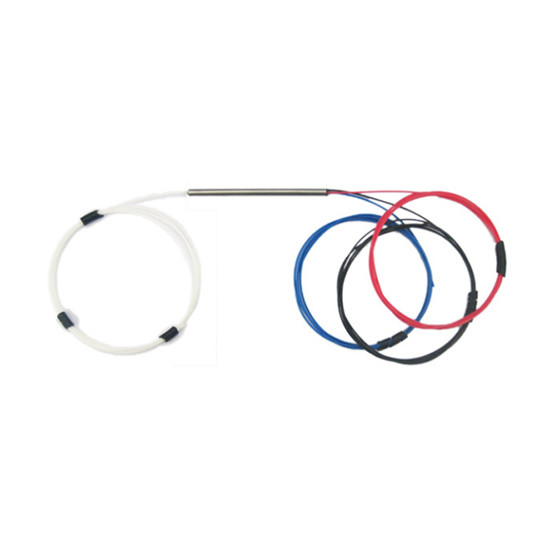

Optical Splitter 1×3 Steel Tube Single Mode Fused Type Fiber Coupler FBT Fiber Optic Splitter (7233105)
Fiber Optic Splitter 1×4/1×8/1×16/1×32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER
Steel Tube Single Mode 1×3 FBT Fiber Optic Splitter Optical Coupler for High-Performance Networks 0 Steel Tube Single Mode 1×3 FBT Fiber Optic Splitter Optical Coupler for High-Performance Networks 1
FBT Fiber Splitter Applications
  • FTTH, LAN, PON & Optical CATV
  • Local ring net, Optical fiber communication system
  • Optical fiber test equipment, Optical fiber sensor
FBT Fiber Splitter Specifications
Input & OutputOptical Splitter 3 in 1 out FBT Fiber Optic Splitter
Fiber Type9/125 SMF-28 or customer specified
Operating Wavelength (nm)1310,1490,1550nm
Coupling Ratio (%)1-50%
Bandwidth (nm)20nm
Typical Insertion Loss (dB)≤5.5
Polarization Dependent Loss (dB)≤0.1
Homogeneity (dB)≤0.9
Directivity (dBm)≥60
Uniformity (dB)0.5
Typical Dependent Loss (dB)≤0.15
Temperature Stability (dB/ºC)≤0.002
Operating Temperature (℃)-40 ～ 70
Storage Temperature (℃)-40 ～ 85
Fiber Cablebare fiber, loose tube fiber
Fiber ConnectorSC FC LC ST
BrandHELLOSIGNAL® OR OEM
Delivery TimeNormally 25 days after received the deposit
MOQ20pcs
Product Description
FBT Fiber Optic Splitter (also called fiber optical coupler) is a device that splits fiber optic light into several parts by a certain ratio. Fiber Splitters are different from PLC fiber splitters in splitting methods. A fiber optic splitter can be produced with Singlemode, Multimode 62.5, and Multimode 50 Fiber. Customization available with LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST connectors or unconnectorized.
For 1×2 Fiber Splitters, different splitting ratios are available including 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1.
Most optical splitters are available in 900µm loose tube and 250µm bare fiber. 1×2 and 2×2 couplers come standard with a protective metal sleeve to cover the split. Higher output counts are built with a box to protect the splitting components.
Performance Specifications
Parameter Wide Band Coupler Dual Window Coupler Multimode Fiber Coupler
Grade P | A P | A P | A
Operating Wavelength (nm) 1310,1550 or C + L Band 1310 and 1550 850 or 1310 or Specify
Operating Bandwidth (nm) ±40 ±40 ±40
Typical Excess Loss (dB) <0.7 | <0.1 <0.07 | <0.1 <0.4 | <0.7
Notice: Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
