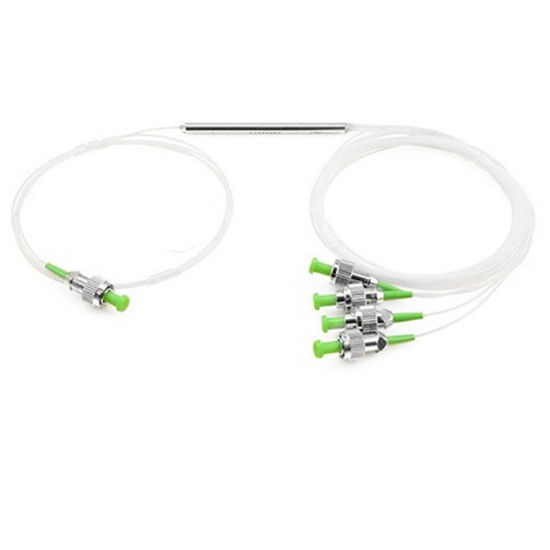

Optical Splitter 1×4 Steel Tube Single Mode FBT Fiber Optic Splitter FC/APC connectors (7233104)
Fiber Optic Splitter 1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER
FBT Fiber Splitter 1×4 Applications
- FTTH, LAN, PON & Optical CATV
- Local ring net, Optical fiber communication system
- Optical fiber test equipment, Optical fiber sensor
FBT Fiber Splitter 1×4 Specifications
| Input & Output |
1 to 4 FBT Fiber Optic Splitter Optical Splitter 1×4 |
| Fiber Type |
9/125 SMF-28 or customer specified |
| Operating Wavelength (nm) |
1310,1490,1550nm |
| Coupling Ratio (%) |
1-50% |
| Bandwidth (nm) |
20nm |
| Typical Insertion loss (dB) |
≤7.2 |
| Polarization Dependent Loss (dB) |
≤0.1 |
| Homogeneity (dB) |
≤0.9 |
| Directivity (dBm) |
≥60 |
| Uniformity (dB) |
0.5 |
| Typical dependent loss (dB) |
≤0.15 |
| Temperature Stability (dB/ºC) |
≤0.002 |
| Operating Temperature (℃) |
-40 ～ 70 |
| Storage Temperature (℃) |
-40 ～ 85 |
| Fiber Cable |
bare fiber,loose tube fiber |
| Fiber Connector |
SC FC LC ST |
| Brand |
HELLOSIGNAL® OR OEM |
| Delivery time |
Normally 25 days after received the deposit |
| MOQ |
20pcs |
Product Description
FBT Fiber Optic Splitter (also called fiber optical coupler) is a device that splits the fiber optic light into several parts by a certain ratio. Fiber Splitters are different from PLC fiber splitters in splitting methods. A fiber optic splitter can be produced with Singlemode, Multimode 62.5, and Multimode 50 Fiber. Also available with LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST connectors or unconnectorized.
For 1×2 Fiber Splitters, different splitting ratios are available including 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1.
Most optical splitters are available in 900µm loose tube and 250µm bare fiber configurations. 1×2 and 2×2 couplers come standard with a protective metal sleeve to cover the split. Higher output counts are built with a box to protect the splitting components.
Performance Specifications
Detailed performance specifications for Wide Band Coupler, Dual Window Couplex, and Multimode Fiber Coupler devices:
| Parameter |
Wide Band Coupler |
Dual Window Couplex |
Multimode Fiber Coupler |
| Grade |
P | A |
P | A |
P | A |
| Operating Wavelength (nm) |
1310,1550 or C + L Band |
1310 and 1550 |
850 or 1310 or Specify |
| Operating Bandwidth (nm) |
±40 |
±40 |
±40 |
| Typical Excess Loss (dB) |
<0.7 | <0.1 |
<0.07 | <0.1 |
<0.4 | <0.7 |
Note: Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
