FBT Fused Type Optical Coupler with FC/APC Connector 1X3 Split Ratio for 1310-1550nm Wavelength Fiber Optic Splitter

FBT Fused Type Optical Coupler with FC/APC Connector 1X3 Split Ratio for 1310-1550nm Wavelength Fiber Optic Splitter
FBT Fused Type Optical Coupler with FC/APC Connector 1X3 Split Ratio for 1310-1550nm Wavelength Fiber Optic Splitter
FBT Fused Type Optical Coupler with FC/APC Connector 1X3 Split Ratio for 1310-1550nm Wavelength Fiber Optic Splitter
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Model Number: Single Mode Fibre Optic Splitter
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Operating Wavelength (nm): 1310,1490,1550nm Coupling Ration (%): 1-50%
Bandwidth (nm): 20nm Operating Temperature (℃): -40 ～ 70
Fiber Connector: SC FC LC ST
Highlight:

FBT Fused Type Optical Coupler

,

Coupler Optical Networking Products

Product Description

FBT Fused Type Optical Coupler FC/APC Connector 1X3 (7233103)
Fiber Optic Splitter 1×4/1×8/1×16/1×32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER
Inquire Now FBT Fused Type Optical Coupler with FC/APC Connector 1X3 Split Ratio for 1310-1550nm Wavelength Fiber Optic Splitter 0
1×3 Fibre Optic Splitter Applications
  • FTTH, LAN, PON & Optical CATV
  • Local ring net, Optical fiber communication system
  • Optical fiber test equipment, Optical fiber sensor
1×3 Fibre Optic Splitter Specifications
Input & Output 1×3 Single Mode Fibre Optic Splitter
Fiber Type 9/125 SMF-28 or customer specified
Operating Wavelength (nm) 1310,1490,1550nm
Coupling Ratio (%) 1-50%
Bandwidth (nm) 20nm
Typical Insertion loss (dB) ≤5.5
Polarization Dependent Loss (dB) ≤0.1
Homogeneity (dB) ≤0.9
Directivity (dBm) ≥60
Uniformity (dB) 0.5
Typical dependent loss (dB) ≤0.15
Temperature Stability (dB/ºC) ≤0.002
Operating Temperature (℃) -40 ～ 70
Storage Temperature (℃) -40 ～ 85
Fiber Cable bare fiber, loose tube fiber
Fiber Connector SC FC LC ST
Brand HELLOSIGNAL® OR OEM
Delivery time Normally 25 days after received the deposit
MOQ 20pcs
Product Description
FBT Fiber Optic Splitter (also called fiber optical coupler) is a device that splits the fiber optic light into several parts by a certain ratio. Fiber Splitters are different from PLC fiber splitters in splitting methods.
A fiber optic splitter can be produced with Singlemode, Multimode 62.5, and Multimode 50 Fiber. You can also customize them with LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST connectors or unconnectorized.
When it comes to 1×2 Fiber Splitters, you can request details for different splitting ratios, such as 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1.
Most optical splitters are available in 900µm loose tube and 250µm bare fiber. 1×2 and 2×2 couplers come standard with a protective metal sleeve to cover the split. Higher output counts are built with a box to protect the splitting components.

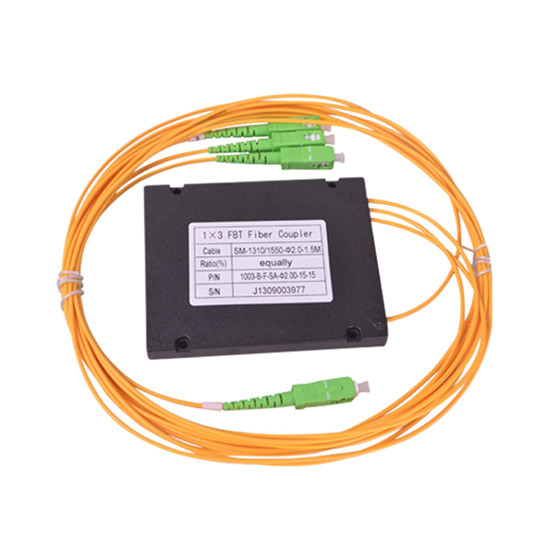

1×3 Fibre Optic Splitter Detailed Images
FBT Fused Type Optical Coupler with FC/APC Connector 1X3 Split Ratio for 1310-1550nm Wavelength Fiber Optic Splitter 1
Performance Specifications
Parameter Wide Band Coupler Dual Window Couplex Multimode Fiber Coupler
Grade P | A P | A P | A
Operating Wavelength (nm) 1310,1550 or C + L Band 1310 and 1550 850 or 1310 or Specify
Operating Bandwidth (nm) ±40 ±40 ±40
Typical Excess Loss (dB) <0.7 | <0.1 <0.07 | <0.1 <0.4 | <0.7
Insertion Loss(dB) 50/50 <3.4 | <3.6 <3.4 | <3.6 <3.7 | <4.0
Insertion Loss(dB) 40/60 <4.4/2.6 | <4.7/2.8 <4.4/2.6 | <4.7/2.8 <4.7/2.7 | <5.0/3.0 <4.7/2.7 | <5.0/3.0
Polarization Dependent Loss <0.1 | <0.15 <0.17 | <0.15
Directivity (dB) >50 >35
Operating Temperature (℃) -40~+70 -40~+70 -40~+70
Storage Temperature (℃) -40~+85 -40~+85 -40~+85
Notice: Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
Important Alternative Information
A B C D E F G H I
Mode Grade Wavelength Port Fiber Type Package Fiber Diameter Coupling Ratio Connector Type
1=WBC 2=DWC 3=MMC Z=Customized 1=P 2=A 1=1550 2=1310 3=1310/1550 4=1310/1490/1550 Z=Customized 1=1×2 2=2×2 0=SM 9/125 1=MM 50/125 2=MM 62.5/125 Z=Customized 1=03×54 2=03×60 3=90x20x10 4=100x80x10 0=250um 1=900um 2=2.0mm 3=3.0mm 1=1/99 2=2/98 3=3/97 5=5/95 10=10/90 20=20/80 30=30/70 40=40/60 50=50/50 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST Z=Customized
Related Products
FBT Fused Type Optical Coupler with FC/APC Connector 1X3 Split Ratio for 1310-1550nm Wavelength Fiber Optic Splitter 2
Multimode Fiber Optic Splitter 1X2 ABS Box Fused Type Fiber Coupler FBT(7233101)
FBT Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
Optical Splitter 1×4 out ABS Box
Optical Splitter 1×4 out ABS Box Single Mode Fused Type Optical Coupler FBT Fiber Optic Splitter(7233102)
FBT Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
FBT Fused Type Optical Coupler with FC/APC Connector 1X3 Split Ratio for 1310-1550nm Wavelength Fiber Optic Splitter 4
FBT Fused Type Optical Coupler FC/APC Connector 1X3 (7233103)
FBT Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
Optical Splitter 1×4 Steel Tube
Optical Splitter 1×4 Steel Tube Single Mode FBT Fiber Optic Splitter FC/APC connectors (7233104)
FBT Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

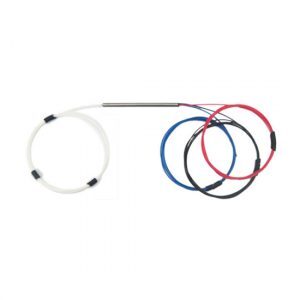

Optical Splitter 1×3 Steel Tube
