96 Core Fiber Optical Terminal Box with ABS+PC Material and Module PLC Splitter for High-Capacity Fiber Management

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-96A-2（7232049）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Gray、Black	Capacity:	96 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Module PLC Splitter
Dimension(LWD,MM):	490400150	Weight(KG):	2.75
Highlight:	fiber optical terminal box , fiber termination box

Product Description

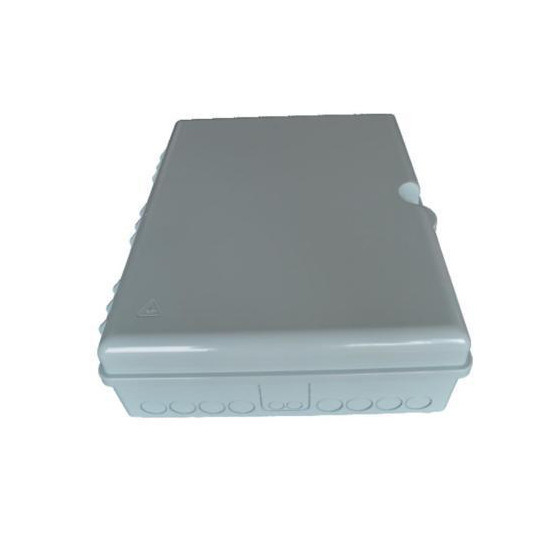

Fiber Optical Terminal Box - ZCFTB-96A-2 (7232049)

High-capacity fiber optical terminal box designed for FTTx networks, supporting up to 96 cores with IP55 protection rating and multiple material options.

Technical Specifications

Model No.	ZCFTB-96A-2 (7232049)
Color	White, Gray, Black
Capacity	96 core
Protection Level	IP55
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Module PLC splitter
Dimension (LWD, MM)	490400150
Inner Box Size (MM)	500410160
Outer Box Size (MM)	655515425
Weight (KG)	2.75
Gross Weight (KG)	13
PCS/Carton	4

Product Overview

ZION COMMUNICATION Model ZCFTB-96A-2 serves as the termination point in FTTx networks, connecting drop cables with feeder cables to support at least 96 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

Packaging Information

Plastic bag size: 490*400*150mm
Inner box with single corrugated size: 500*410*160mm
Carton with double corrugated size: 655*515*425mm (4PCS/Box)
Weight per carton: 13 KG

Transportation and Storage Guidelines

Avoid exposure to rain, direct sunlight, and physical compression during transportation. Store products in a warehouse environment protected from moisture, sunlight, and fire sources. Optimal storage temperature range: 25℃ to +40℃.

Special parts that are easily damaged during transportation should be protected carefully.
