64 Core Fiber Optical Terminal Box with ABS+PC Material and Module PLC Splitter for Fttx Networks

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-64A-1 (7232048)

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Gray、Black	Capacity:	64 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Module PLC Splitter
Dimension(LWD,MM):	450412155	Weight(KG):	2.55
Highlight:	fiber optical terminal box , fiber termination box

Product Description

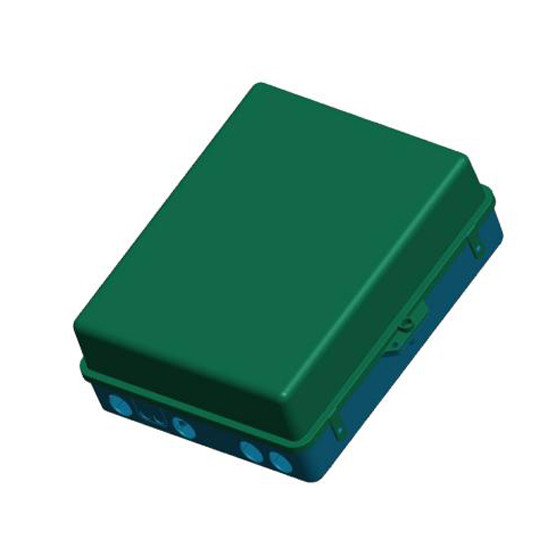

Fiber Optical Terminal Box ZCFTB-64A-1 (7232048)

Product Overview

ZION COMMUNICATION Model ZCFTB-64A-1 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to support at least 64 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management.

Technical Specifications

Model Number	ZCFTB-64A-1 (7232048)
Available Colors	White, Gray, Black
Fiber Capacity	64 core
Protection Level	IP55
Construction Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Module PLC splitter
Dimensions (L×W×D, mm)	450×412×155
Inner Box Size (mm)	460×425×165
Outer Box Size (mm)	655×515×425
Unit Weight (kg)	2.55
Gross Weight per Carton (kg)	13
Units per Carton	4

Packaging Information

Plastic bag size: 450×412×155mm
Inner box with single corrugated size: 460×425×165mm
Carton with double corrugated size: 655×515×425mm (4 units per box)
Weight per carton: 13 kg

Transportation & Storage Guidelines

Protect from rain, direct sunlight, and compression during transit
Store in dry warehouse conditions away from moisture, sunlight, and fire sources
Recommended storage temperature: 25℃ to +40℃
Handle delicate components with extra care during shipping
