48 Core Fiber Optical Terminal Box with ABS+PC Material and Module PLC Splitter for FTTX Networks

48 Core Fiber Optical Terminal Box with ABS+PC Material and Module PLC Splitter for FTTX Networks
48 Core Fiber Optical Terminal Box with ABS+PC Material and Module PLC Splitter for FTTX Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-48A-1（7232047）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Gray、Black Capacity: 48 Core
Material: ABS、ABS+PC PLC Splitter Type: Module PLC Splitter
Dimension(L*W*D,MM): 420*320*125 Weight(KG): 2.4
Highlight:

fiber optical terminal box

,

fiber termination box

Product Description

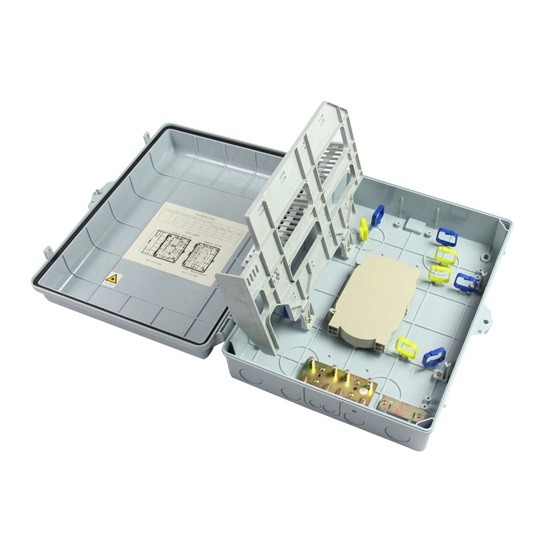

Fiber Optical Terminal Box - ZCFTB-48A-1 (7232047)
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
48 Core Fiber Optical Terminal Box with ABS+PC Material and Module PLC Splitter for FTTX Networks 0
Technical Specifications
Model No. ZCFTB-48A-1(7232047) 48 Core Fiber Optical Terminal Box with ABS+PC Material and Module PLC Splitter for FTTX Networks 1
Color White, Gray, Black
Capacity 48 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Module PLC splitter
Dimension (L*W*D, MM) 420*320*125
Inner Box Size (MM) 430*330*135
Outer Box Size (MM) 475*455*340
Weight (KG) 2.4
Gross Weight (KG) 14
PCS/Carton 5
Product Overview
ZION COMMUNICATION Model No. ZCFTB-48A-1 connects drop cable with feeder cable as the termination point in FTTX networks, capable of meeting at least 48 user requirements. This terminal box provides suitable space for splicing, splitting, storage, and cable management.
Product Information
  • Plastic bag size: 420*320*125mm
  • Inner box with single corrugated size: 430*330*135mm
  • Carton with double corrugated size: 475*455*340mm (5PCS/Box)
  • Weight per carton: 14 KG
Transportation and Storage
Avoid rain, sun exposure, and squeezing during transportation. Products should be stored in warehouses avoiding moisture, sun, and fire. Storage temperature should be maintained between 25℃ and +40℃.
Note: Special parts that are easily damaged during transportation should be protected carefully.
