24 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-24L-1（7232046）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Black	Capacity:	24 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Mini PLC Splitter
Dimension(LWD,MM):	316274102	Weight(KG):	1.4
Highlight:	fiber optical terminal box , fiber termination box

Product Description

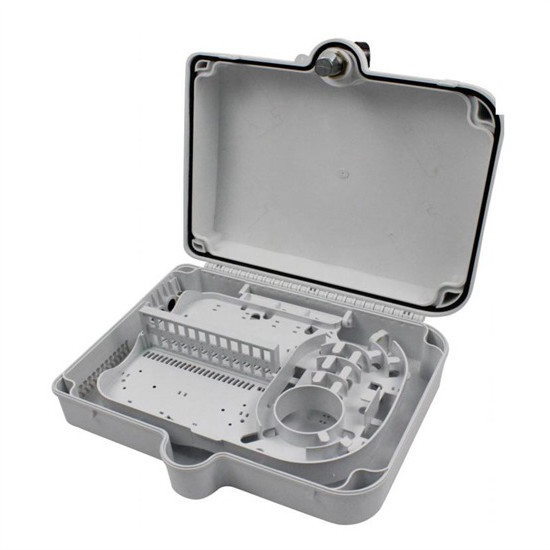

Fiber Optical Terminal Box - ZCFTB-24L-1 (7232046)

4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

Technical Specifications

Model No.	ZCFTB-24L-1(7232046)
Color	White, Black
Capacity	24 core
Protection Level	IP55
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Mini PLC Splitter
Dimension (LWD, MM)	316274102
Inner Box Size (MM)	320280110
Outer Box Size (MM)	575335565
Weight (KG)	1.4
Gross Weight (KG)	15
PCS/Carton	10

Product Overview

ZION COMMUNICATION Model No. ZCFTB-24H-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is capable of meeting at least 24 users requirements. It provides suitable space for splicing, splitting, storage and management of fiber optic cables.

Product Images

Packaging Information

Plastic bag size: 316*274*102mm
Inner box with single corrugated size: 320*280*110mm
Carton with double corrugated size: 575*335*565mm (10 PCS/Box)
Weight per carton: 15KG

Transportation and Storage Guidelines

Avoid raining, sun exposure and squeezing during transportation
Products should be stored in warehouse avoiding moisture, sun, fire
Storage temperature should be maintained between 25℃ and +40℃
Special parts that are easily damaged during transportation should be protected carefully
