24 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks

24 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks
24 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-24H-1（7232045）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Black Capacity: 24 Core
Material: ABS、ABS+PC PLC Splitter Type: Mini PLC Splitter
Dimension(L*W*D,MM): 335*260*115 Weight(KG): 2.2
Highlight:

fiber optical terminal box

,

fiber termination box

Product Description

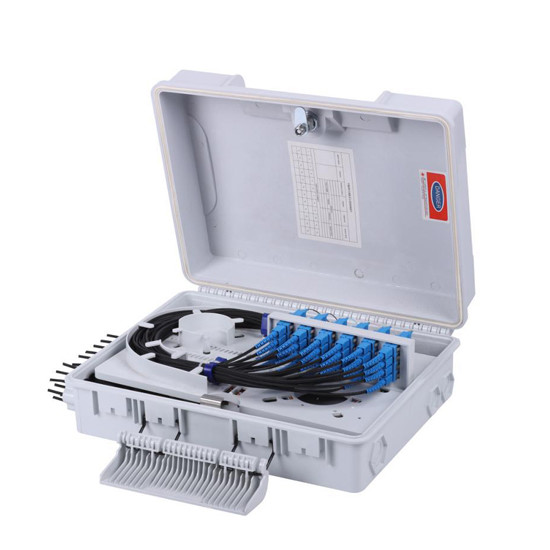

Fiber Optical Terminal Box ZCFTB-24H-1 (7232045)
High-capacity fiber optic terminal box designed for FTTx networks, supporting up to 24 user connections with IP55 protection rating.
Product Overview
ZION COMMUNICATION Model ZCFTB-24H-1 serves as the termination point connecting drop cables with feeder cables in FTTx networks. This terminal box provides adequate space for splicing, splitting, storage, and management of fiber optic connections.
24 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks 0
Technical Specifications
Model Number ZCFTB-24H-1 (7232045) 24 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks 1
Color Options White, Black
Capacity 24 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Mini PLC Splitter
Dimensions (L×W×D, mm) 335×260×115
Inner Box Size (mm) 345×270×125
Outer Box Size (mm) 640×360×285
Weight (kg) 2.2
Gross Weight (kg) 11.5
Units per Carton 5
Product Images
24 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks 2 24 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks 3 24 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks 4
Packaging Information
  • Plastic bag size: 335×260×115mm
  • Inner box with single corrugated size: 345×270×125mm
  • Carton with double corrugated size: 640×360×285mm (5 units per box)
  • Weight per carton: 11.5kg
Transportation and Storage Guidelines
Avoid exposure to rain, direct sunlight, and physical compression during transportation. Store products in a warehouse environment protected from moisture, sunlight, and fire sources. Maintain storage temperature between 25℃ and +40℃.
Special components susceptible to damage during transit require careful protective handling.
