24 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-24G-1（7232044）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Black	Capacity:	24 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Mini PLC Splitter
Dimension(LWD,MM):	320270110	Weight(KG):	1.4
Highlight:	fiber optical terminal box , fiber termination box

Product Description

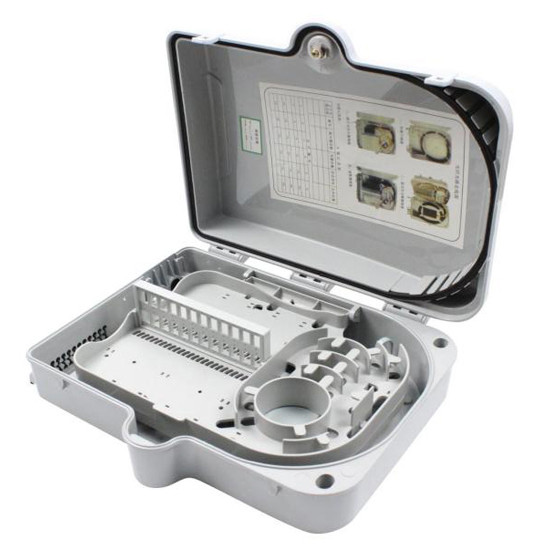

Fiber Optical Terminal Box ZCFTB-24G-1 (7232044)

Product Overview

ZION COMMUNICATION Model ZCFTB-24G-1 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to accommodate at least 24 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

Technical Specifications

Model Number	ZCFTB-24G-1 (7232044)
Color	White, Black
Capacity	24 core
Protection Level	IP55
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Mini PLC Splitter
Dimensions (L×W×D, mm)	320×270×110
Inner Box Size (mm)	325×275×115
Outer Box Size (mm)	590×335×565
Weight (kg)	1.4
Gross Weight (kg)	15
Units per Carton	10

Packaging Information

Plastic bag size: 320×270×110mm
Inner box with single corrugated size: 325×275×115mm
Carton with double corrugated size: 590×335×565mm (10 units per box)
Weight per carton: 15kg

Transportation and Storage Guidelines

Avoid exposure to rain, direct sunlight, and compression during transportation
Store products in warehouse conditions avoiding moisture, sunlight, and fire sources
Recommended storage temperature: -25℃ to +40℃
Special components susceptible to damage require careful protection during transit
