24 Core Fiber Optical Terminal Box with ABS+PC Material and IP65 Protection for Fttx Networks

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-24E-1（7232042）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Grey	Capacity:	24 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Module Box PLC Splitter
Dimension(LWD,MM):	344210103	Weight(KG):	2
Highlight:	fiber optical terminal box , fiber termination box

Product Description

Fiber Optical Terminal Box-ZCFTB-24E-1（7232042）

Product Overview

4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

Technical Specifications

Model No.	ZCFTB-24E-1(7232042)
Color	White, Grey
Capacity	24 core
Protection Level	IP65
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Module Box PLC splitter
Dimension (LWD, MM)	344210103
Inner Box Size (MM)	350215110
Outer Box Size (MM)	445365565
Weight (KG)	2
Gross Weight (KG)	21
PCS/Carton	10

Product Description

ZION COMMUNICATION Model No. ZCFTB-24E-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is capable of meeting at least 16 users requirements. It provides suitable space for splicing, splitting, storage and management of fiber optic cables.

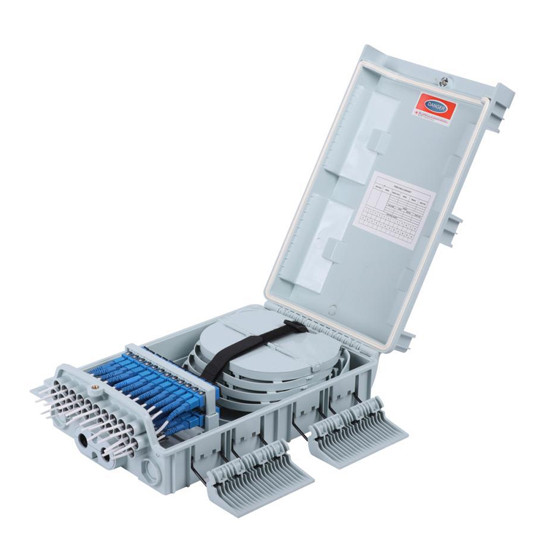

Product Images

Packaging Information

Plastic bag size: 344*210*103mm
Inner box with single corrugated size: 350*215*110mm
Carton with double corrugated size: 445*365*565mm (10PCS/Box)
Weight per carton: 21KG

Transportation and Storage

Avoid raining, sun exposure and squeezing during transportation
Products should be stored in warehouse avoiding moisture, sun, fire
Storage temperature should be from 25℃ to +40℃
Special parts that are easily damaged during transportation should be protected carefully
