24 Core IP68 Fiber Optical Terminal Box with PP+Glassfiber Material for Fttx Network

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-24C-1（7232041）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	Black	Capacity:	24 Core
Material:	PP+glassfiber	PLC Splitter Type:	Mini PLC Splitter
Dimension(LWD,MM):	380243152	Weight(KG):	5.2
Highlight:	fiber optical terminal box , fiber termination box

Product Description

Fiber Optical Terminal Box - ZCFTB-24C-1 (7232041)

4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

Technical Specifications

Model No.	ZCFTB-24C-1(7232041)
Color	Black
Capacity	24 core
Protection Level	IP68
Material	PP+glassfiber
Flame retardant performance	Non-flame retardant
PLC splitter Type	Mini PLC Splitter
Dimension (LWD, MM)	380243152
Inner box size (MM)	410250182
Outer box size (MM)	515425385
Weight (KG)	5.2
Gross weight (KG)	21.5
PCS/Carton	4

Product Overview

ZION COMMUNICATION Model No. ZCFTB-24C-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 24 users requirements. It can help splicing, splitting, storage and management with suitable space.

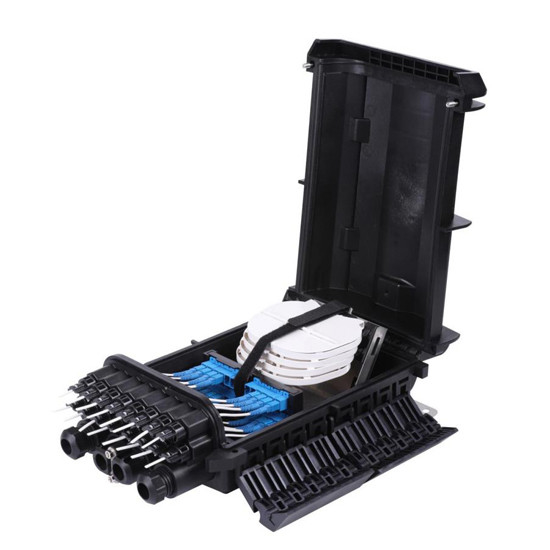

Product Images

Packaging Information

Plastic bag size: 380*243*152mm
Inner box with single corrugated size: 410*250*182mm
Carton with double corrugated size: 515*425*385mm (4PCS/Box)
Weight per carton: 21.5KG

Transportation and Storage

Avoid raining, sun exposuring and squeezing during transportation

Products should be stored in the warehouse avoiding moisture, sun, fire.

The storage temperature should be from 25℃～+40℃

Note: Special parts that are easily damaged during transportation should be protected carefully.
