16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks

16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks
16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-16W-1（7232040）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Black Capacity: 16 Core
Material: ABS、ABS+PC PLC Splitter Type: Mini PLC Splitter
Dimension(L*W*D,MM): 300*180*83 Weight(KG): 1.35
Highlight:

fiber optical terminal box

,

fiber termination box

Product Description

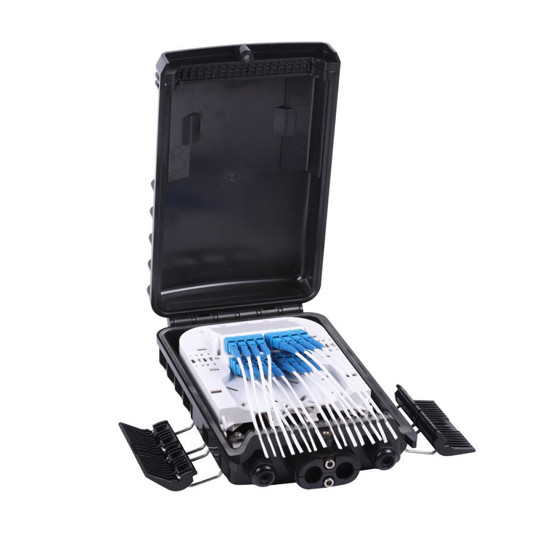

Fiber Optical Terminal Box - ZCFTB-16W-1 (7232040)
Product Overview

ZION COMMUNICATION Model ZCFTB-16W-1 serves as the termination point in FTTx networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Networks 0
Technical Specifications
Model No. ZCFTB-16W-1 (7232040)
Color White, Black
Capacity 16 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Mini PLC Splitter
Dimension (L*W*D, MM) 300*180*83
Inner Box Size (MM) 310*190*95
Outer Box Size (MM) 490*325*395
Weight (KG) 1.35
Gross Weight (KG) 14
PCS/Carton 10
Packaging Information
  • Plastic bag size: 300*180*83mm
  • Inner box with single corrugated size: 310*190*95mm
  • Carton with double corrugated size: 490*325*395mm (10PCS/Box)
  • Weight per carton: 14KG
Transportation & Storage Guidelines
  • Avoid exposure to rain, direct sunlight, and compression during transportation
  • Store in warehouse conditions avoiding moisture, sunlight, and fire hazards
  • Recommended storage temperature: 25℃ to +40℃
  • Special components requiring careful handling should be protected during transit
