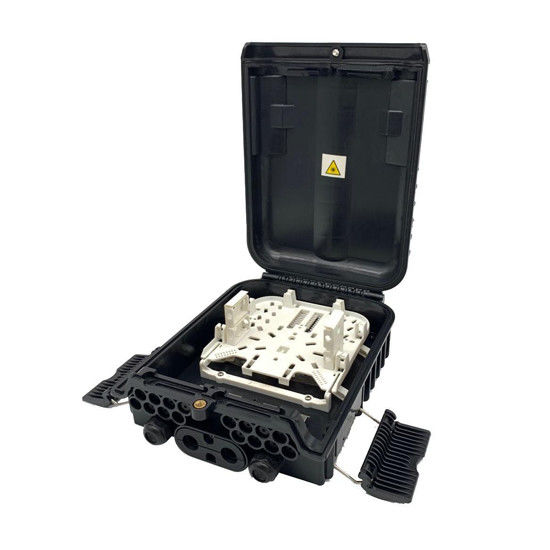

16 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Network

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-16S-2（7232039）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Black	Capacity:	16 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Module Box PLC Splitter
Dimension(LWD,MM):	28521085	Weight(KG):	1.35
Highlight:	fiber optical terminal box , fiber termination box

Product Description

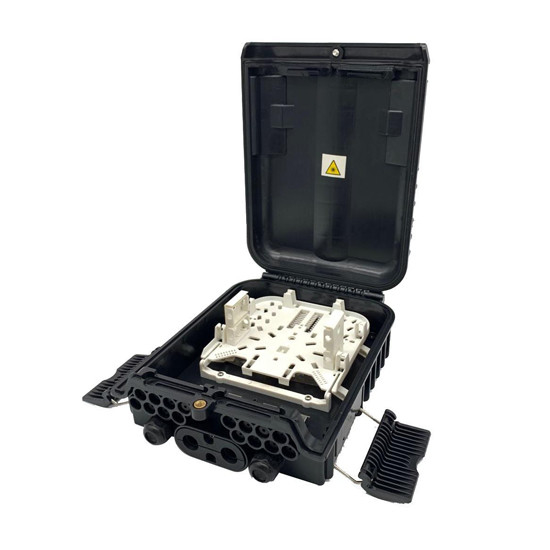

Fiber Optical Terminal Box - ZCFTB-16S-2 (7232039)

Product Overview

ZION COMMUNICATION Model ZCFTB-16S-2 serves as the termination point in Fttx networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

Technical Specifications

Model Number	ZCFTB-16S-2 (7232039)
Color Options	White, Black
Capacity	16 core
Protection Level	IP55
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Module Box PLC splitter
Dimensions (L×W×D, MM)	285×210×85
Inner Box Size (MM)	290×215×90
Outer Box Size (MM)	445×315×465
Weight (KG)	1.35
Gross Weight (KG)	14.5
Units per Carton	10

Product Images

Packaging Information

Plastic bag size: 285×210×85mm
Inner box with single corrugated size: 290×215×90mm
Carton with double corrugated size: 445×315×465mm (10PCS/Box)
Weight per carton: 14.5KG

Transportation and Storage Guidelines

Avoid exposure to rain, direct sunlight, and physical compression during transportation
Store products in warehouse conditions avoiding moisture, sunlight, and fire hazards
Recommended storage temperature range: 25℃ to +40℃
Special components susceptible to damage should be carefully protected during transit
