16 Core Fiber Optical Terminal Box with PP+Glassfiber Material and Mini PLC Splitter for Fttx Network

16 Core Fiber Optical Terminal Box with PP+Glassfiber Material and Mini PLC Splitter for Fttx Network
16 Core Fiber Optical Terminal Box with PP+Glassfiber Material and Mini PLC Splitter for Fttx Network
16 Core Fiber Optical Terminal Box with PP+Glassfiber Material and Mini PLC Splitter for Fttx Network
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-16N-1（7232037）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: Black Capacity: 16 Core
Material: PP+glassfiber PLC Splitter Type: Mini PLC Splitter
Dimension(L*W*D,MM): 290*185*108 Weight(KG): 1.7
Highlight:

fiber optical terminal box

,

fiber termination box

Product Description

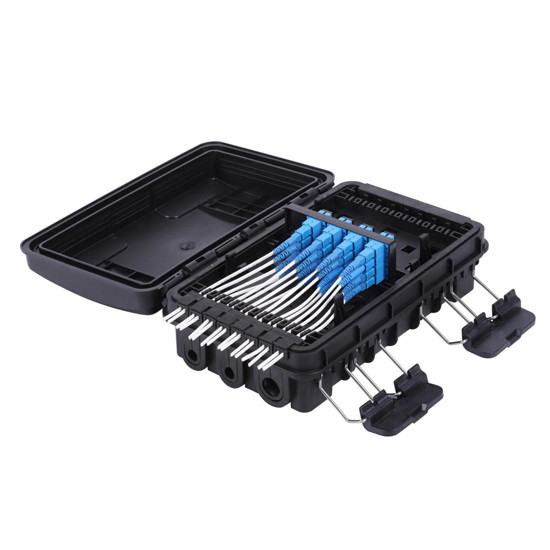

Fiber Optical Terminal Box ZCFTB-16N-1 (7232037)
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
Inquire Now 16 Core Fiber Optical Terminal Box with PP+Glassfiber Material and Mini PLC Splitter for Fttx Network 0
Technical Specifications
Model No. ZCFTB-16N-1(7232037) 16 Core Fiber Optical Terminal Box with PP+Glassfiber Material and Mini PLC Splitter for Fttx Network 1
Color Black
Capacity 16 core
Protection Level IP55
Material PP+glassfiber
Flame retardant performance Non-flame retardant
PLC splitter Type Mini PLC Splitter
Dimension(L*W*D,MM) 290*185*108
Inner box size(MM) 305*205*115
Outer box size(MM) 620*310*420
Weight(KG) 1.7
Gross weight(KG) 18
PCS/Carton 10
Product Overview
ZION COMMUNICATION Model No. ZCFTB-16N-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
Product Images
16 Core Fiber Optical Terminal Box with PP+Glassfiber Material and Mini PLC Splitter for Fttx Network 2 16 Core Fiber Optical Terminal Box with PP+Glassfiber Material and Mini PLC Splitter for Fttx Network 3 16 Core Fiber Optical Terminal Box with PP+Glassfiber Material and Mini PLC Splitter for Fttx Network 4
Packaging Information
  • Plastic bag size: 290*185*108mm
  • Inner box with single corrugated size: 305*205*115mm
  • Carton with double corrugated size: 620*310*420mm (10PCS/Box)
  • Weight per carton: 18KG
Transportation and Storage
  • Avoid raining, sun exposuring and squeezing during transportation
  • Products should be stored in the warehouse avoiding moisture, sun, fire
  • The storage temperature should be from 25℃～+40℃
  • Special parts that are easily damaged during transportation should be protected carefully
