Fiber Optical Terminal Box with 16 HUAWEI Preconnect Ports ABS+PC Material and Mini PLC Splitter

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-16M-1（7232036）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Grey	Capacity:	16 HUAWEI Preconnect Port
Material:	ABS、ABS+PC	PLC Splitter Type:	Mini PLC Splitter
Dimension(LWD,MM):	216239117	Weight(KG):	1
Highlight:	fiber optical terminal box , fiber termination box

Product Description

Fiber Optical Terminal Box - ZCFTB-16M-1 (7232036)

High-performance fiber optical terminal box with 16 HUAWEI preconnect ports, designed for FTTx network applications. This terminal box serves as the connection point between drop cables and feeder cables, capable of supporting at least 16 users.

Product Overview

The ZION COMMUNICATION Model ZCFTB-16M-1 provides comprehensive fiber management capabilities including splicing, splitting, storage, and organization within a compact, durable enclosure.

Technical Specifications

Model Number	ZCFTB-16M-1 (7232036)
Color	White, Grey
Capacity	16 HUAWEI preconnect Port
Protection Level	IP55
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Mini PLC Splitter
Dimension (LWD, MM)	216239117
Inner Box Size (MM)	275230127
Outer Box Size (MM)	475290650
Weight (KG)	1
Gross Weight (KG)	10.5
PCS/Carton	10

Packaging Information

Plastic bag size: 216*239*117mm
Inner box with single corrugated size: 275*230*127mm
Carton with double corrugated size: 475*290*650mm (10PCS/Box)
Weight per carton: 10.5KG

Transportation and Storage Guidelines

Avoid exposure to rain, direct sunlight, and physical compression during transportation. Store products in a dry warehouse protected from moisture, sunlight, and fire sources. Recommended storage temperature range: 25℃ to +40℃.

Note: Special components that are susceptible to damage during transit should be handled with additional care.

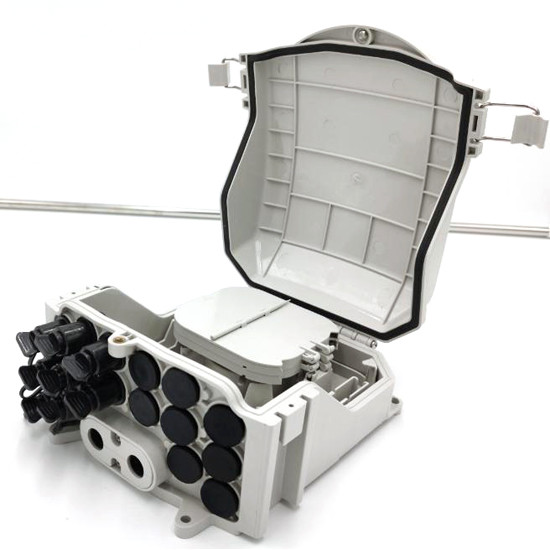

Product Image
