16 Core Fiber Optical Terminal Box with ABS+PC Material and Module Box PLC Splitter for Fttx Network

16 Core Fiber Optical Terminal Box with ABS+PC Material and Module Box PLC Splitter for Fttx Network
16 Core Fiber Optical Terminal Box with ABS+PC Material and Module Box PLC Splitter for Fttx Network
16 Core Fiber Optical Terminal Box with ABS+PC Material and Module Box PLC Splitter for Fttx Network
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-16L-2（7232035）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Black Capacity: 16 Core
Material: ABS、ABS+PC PLC Splitter Type: Module Box PLC Splitter
Dimension(L*W*D,MM): 316*274*102 Weight(KG): 1.4
Highlight:

fiber optical terminal box

,

fiber termination box

Product Description

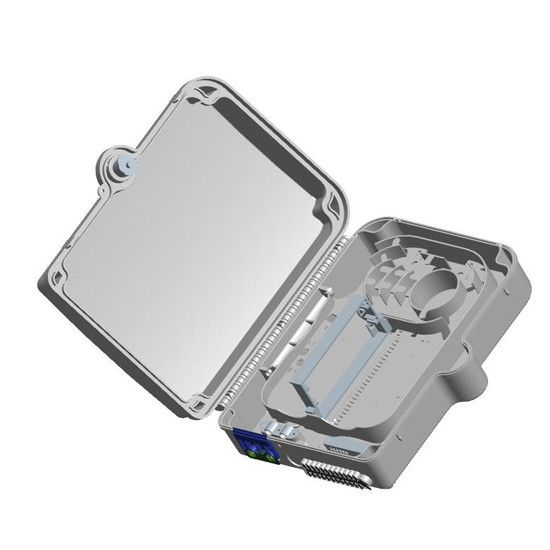

Fiber Optical Terminal Box - ZCFTB-16L-2 (7232035)
Product Overview

ZION COMMUNICATION Model ZCFTB-16L-2 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

16 Core Fiber Optical Terminal Box with ABS+PC Material and Module Box PLC Splitter for Fttx Network 0
Technical Specifications
Model No. ZCFTB-16L-2 (7232035) 16 Core Fiber Optical Terminal Box with ABS+PC Material and Module Box PLC Splitter for Fttx Network 1
Color White, Black
Capacity 16 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Module Box PLC splitter
Dimension (L*W*D, MM) 316*274*102
Inner Box Size (MM) 320*280*110
Outer Box Size (MM) 575*335*565
Weight (KG) 1.4
Gross Weight (KG) 15
PCS/Carton 10
Packaging Information
  • Plastic bag size: 316*274*102mm
  • Inner box with single corrugated size: 320*280*110mm
  • Carton with double corrugated size: 575*335*565mm (10PCS/Box)
  • Weight per carton: 15KG
Transportation & Storage Guidelines

Avoid exposure to rain, direct sunlight, and excessive pressure during transportation. Store products in a warehouse protected from moisture, sunlight, and fire sources. Optimal storage temperature range: -25℃ to +40℃.

Note: Special components susceptible to damage during transit require careful protective measures.
